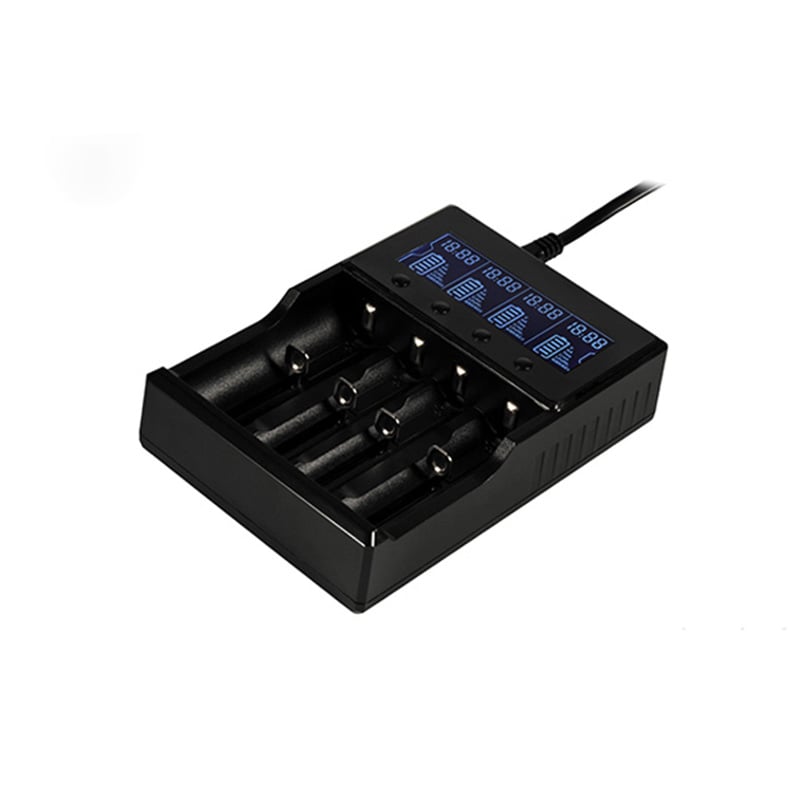

Acebeam A4 Advanced Multi-Battery Charger

SPEC

• Input: 100-240V(AC), 50/60Hz, 600mA(Max)    12V-24V(DC) 2000mA(Max)
• Output: 4.2V/3.65V/1.5V 500mA x 4/1000mA x 4
• Size: 145 (L) x 104 (W) x 39.5 (H) mm
• Weight: 260g
• Complaints: TUV GS FCC CE C-TICK CB ROHS

HOW TO CHARGE?

• Plug the power cable into a standard AC outlet or plug the car adapter into the cigarette lighter in your vehicle.
• No operation for > 30 seconds, it will start the energy saving by lowering screen brightness
• Reversely insert the battery, "Err" (Error) will shows up
• It will auto-identify battery type
• Default current is 500mA, 1000mA is available
• Button A/B/C/D
  Short press 1S:  select 500mA or 1000mA
  Long press 5S:  swap charging modes
• For safety, it will auto-stop charging when it reaches 12 hours
• Taking out batteries and unplug the power when the charging is done

TIPS

• Disconnect the power supply when charging is completed.
• Do not attempt to charge with AC and car power sources at the same time.
• Do not attempt to dismantle or modify A4 multi charger or use it for other purposes.
• As an electrical appliance, keep the charger out of reach of children.
