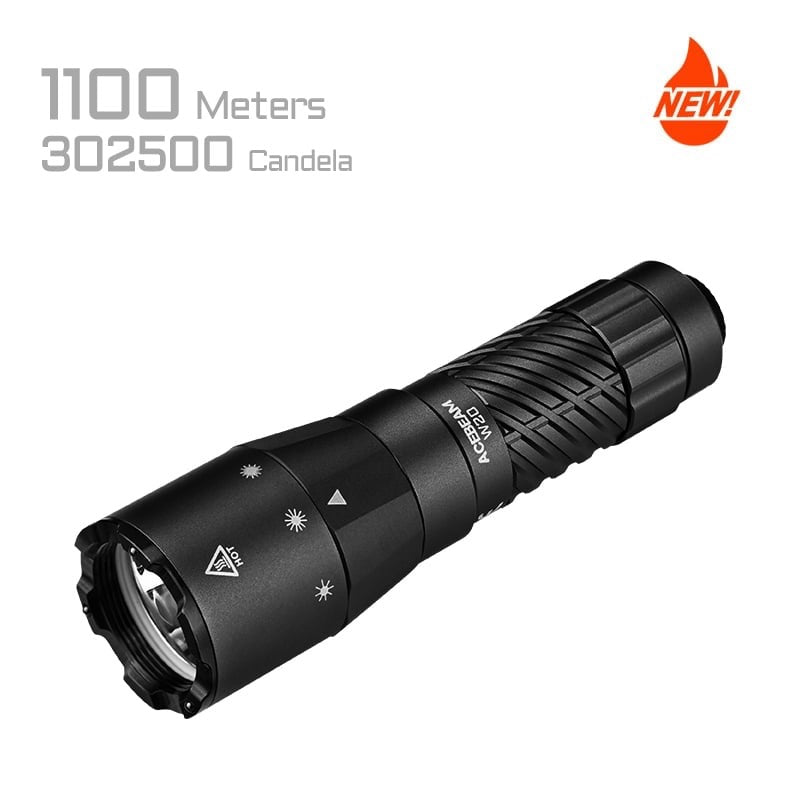

Acebeam W20 – 600 Lumen LEP Tactical Flashlight with Wide-Angle Spill

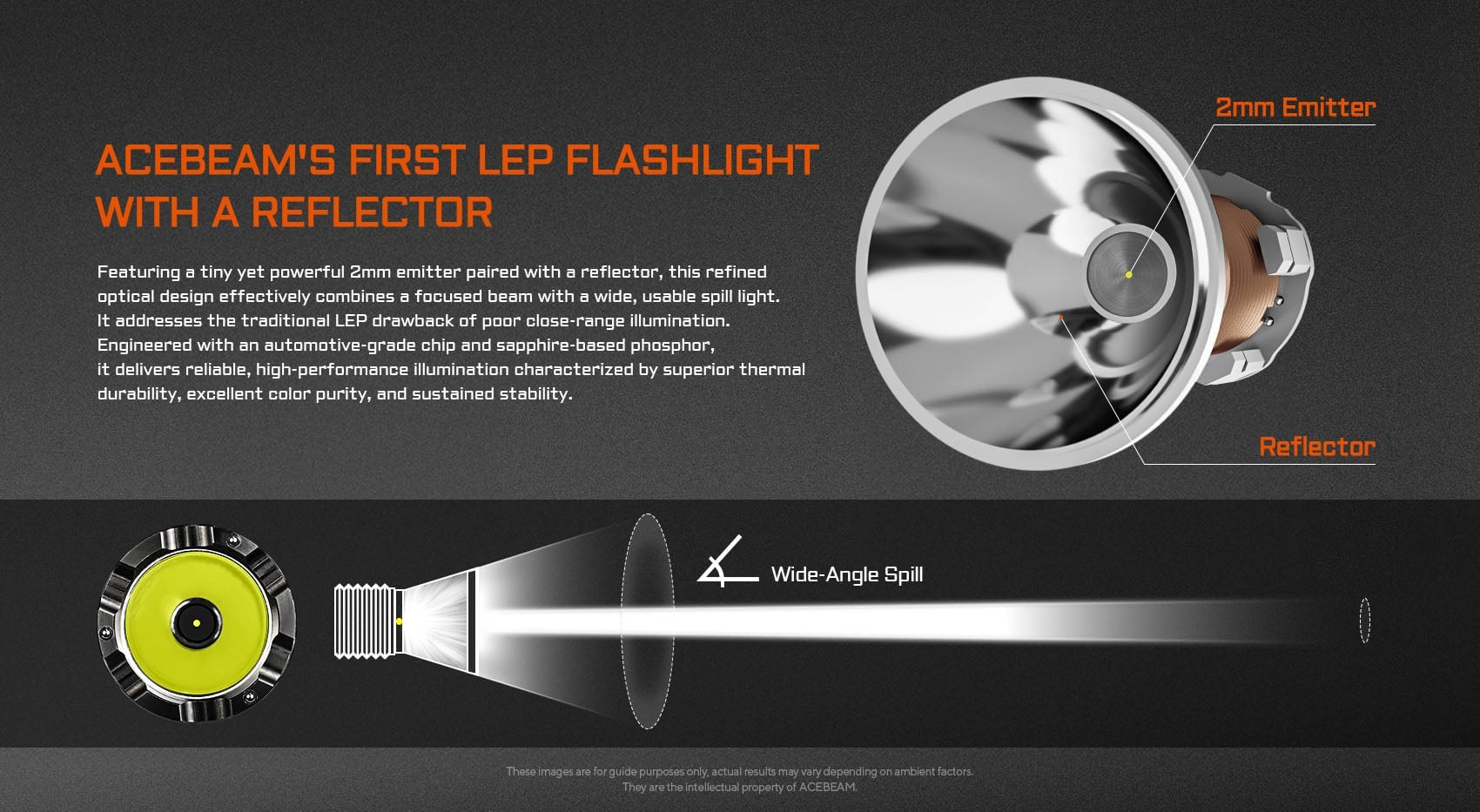

The Acebeam W20 is a LEP tactical flashlight built to excel at both long range and up close. It delivers a 1,100-meter beam with 600 lumens of output through a refined optical system that pairs a tiny 2mm emitter with a reflector, producing a focused LEP beam plus a wide-angle spill — solving the classic LEP weakness of poor close-range lighting. An automotive-grade chip and sapphire-based phosphor give the Acebeam W20 superior thermal durability and stable performance, while a dual-switch design (control ring for Low/Medium/High plus a tactical tail switch for momentary, constant-on, or strobe) keeps operation fast and intuitive. Machined from aerospace-grade AL6061-T6 aluminum with a hard-anodized finish and IP68 rating, the Acebeam W20 survives 1.5-meter drops and harsh weather.

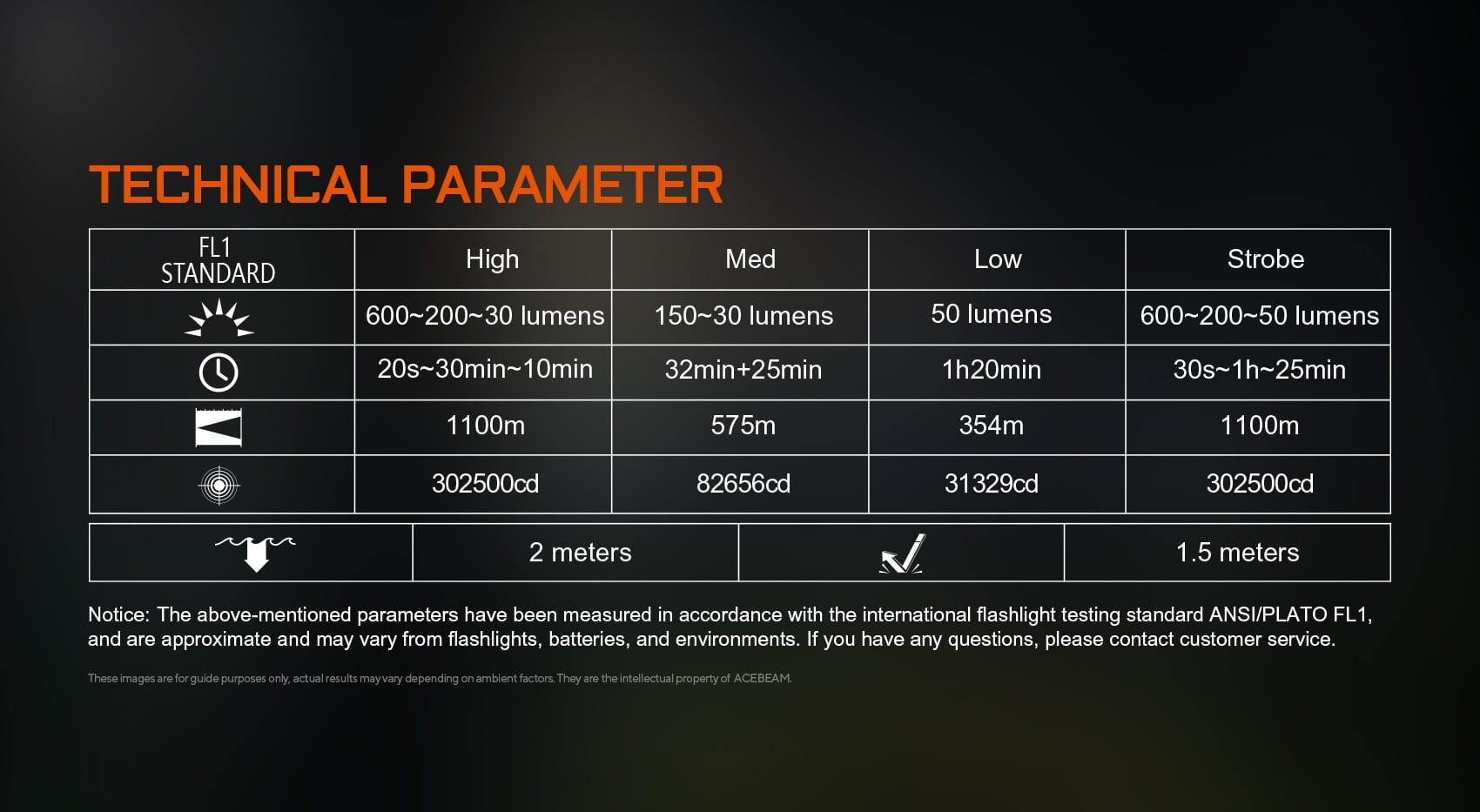

Specifications
| Max Output |
600 lumens |
| Max Beam Distance |
1,100 meters |
| Peak Beam Intensity |
302,500 cd |
| Emitter |
2mm LEP with reflector, wide-angle spill |
| Battery |

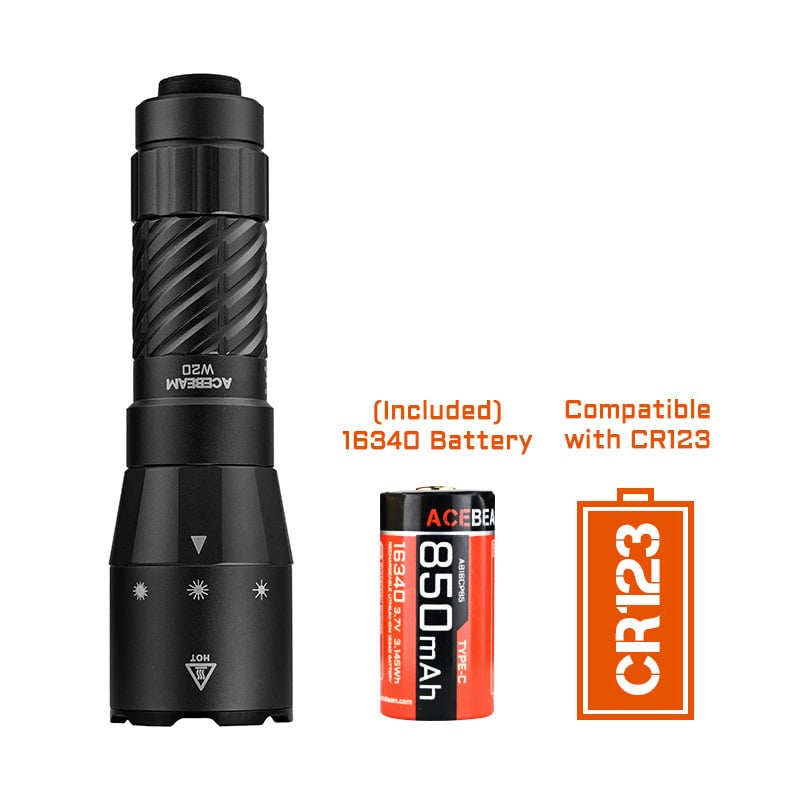

1 x 16340 850mAh USB-C rechargeable (included); CR123 compatible |
| Modes |
Low / Medium / High / Strobe (control ring + tactical tail switch) |
| Length |
115.1mm / 4.53" |
| Head Diameter |
32mm / 1.26" |
| Body Diameter |
25.4mm / 1" |
| Weight |
130.6g / 4.61oz (incl. battery) |
| Body |
AL6061-T6 aluminum, hard-anodized |
| Waterproof |
IP68, 1.5m drop rated |
Frequently Asked Questions
What is the maximum output of the Acebeam W20?
The Acebeam W20 delivers up to 600 lumens and a 1,100-meter beam distance with a peak intensity of 302,500 candela.
What battery does the Acebeam W20 use?

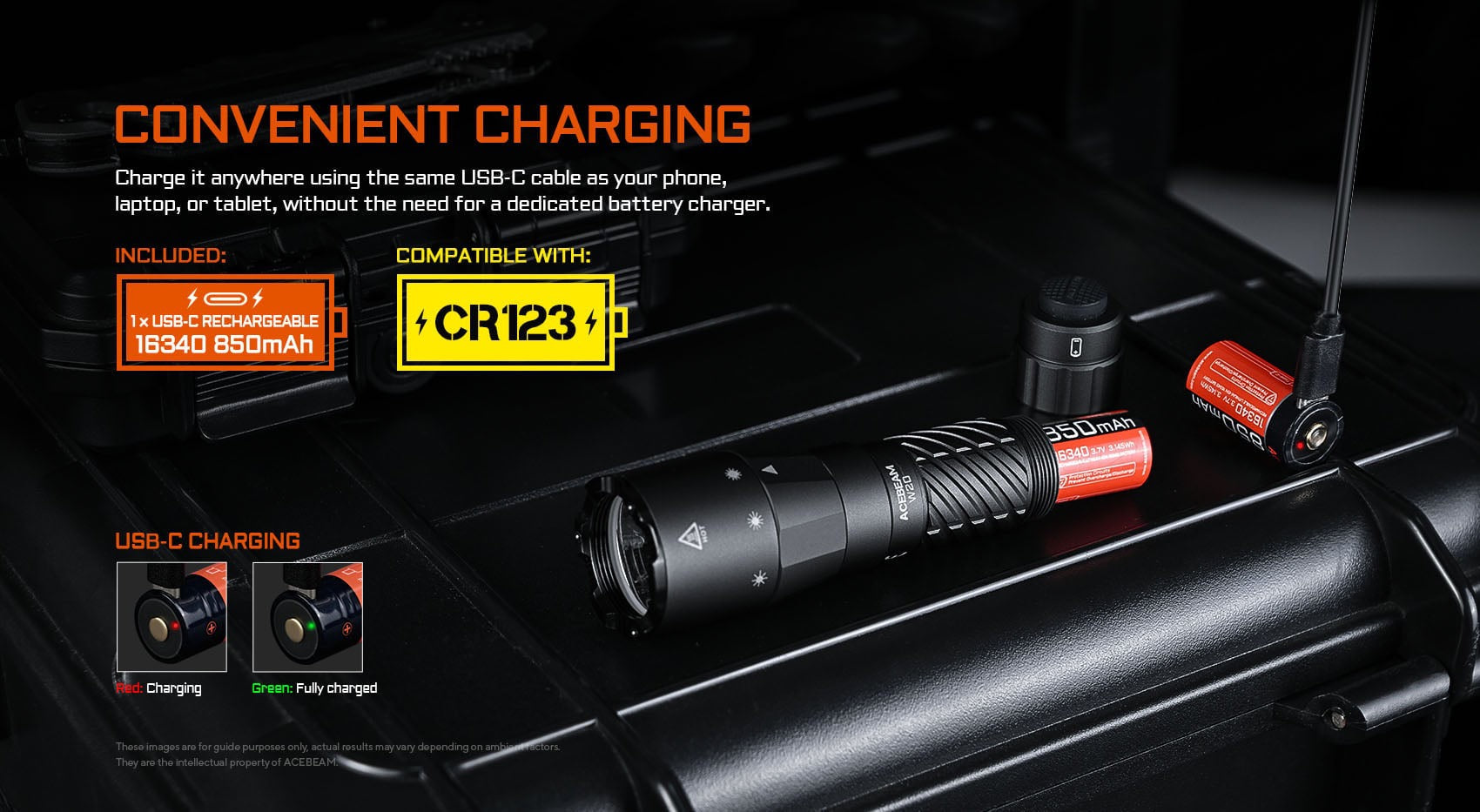

The Acebeam W20 includes one 16340 850mAh USB-C rechargeable Li-ion battery, is compatible with CR123 cells, and the battery is user-replaceable.
Is the Acebeam W20 waterproof?
Yes. The Acebeam W20 carries an IP68 rating and is built to survive 1.5-meter drops and severe weather.
What makes the Acebeam W20 different from a standard LEP light?
The Acebeam W20 combines a focused LEP beam with a wide-angle spill, so it provides both extreme throw and usable close-range illumination that traditional LEP flashlights lack.
How do you operate the Acebeam W20?
The Acebeam W20 uses a dual-switch design: rotate the control ring to select Low, Medium, or High, and use the tactical tail switch for momentary, constant-on, or strobe.
Where can I buy the Acebeam W20?
You can buy the Acebeam W20 at Going Gear, an authorized Acebeam dealer.
