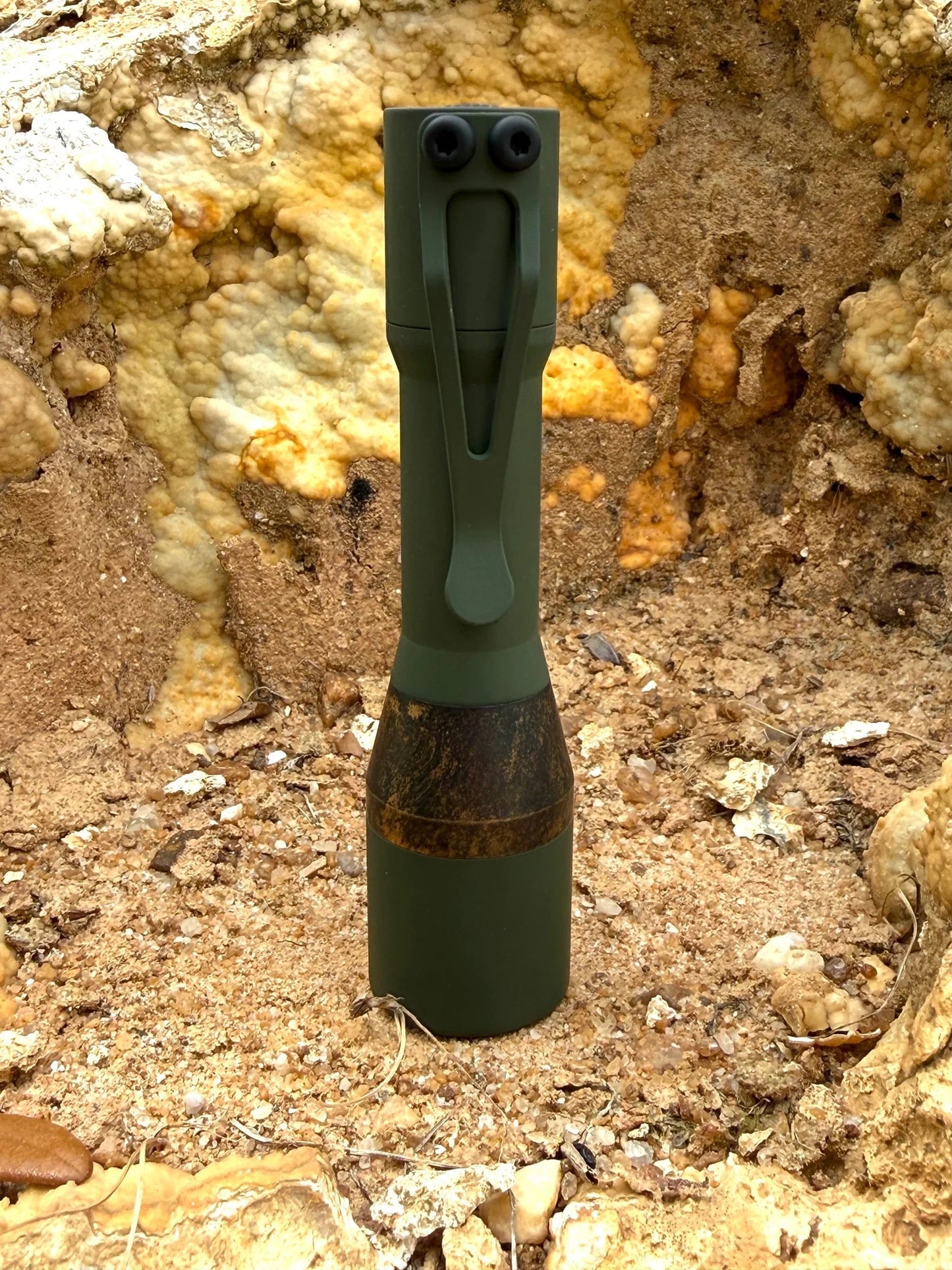

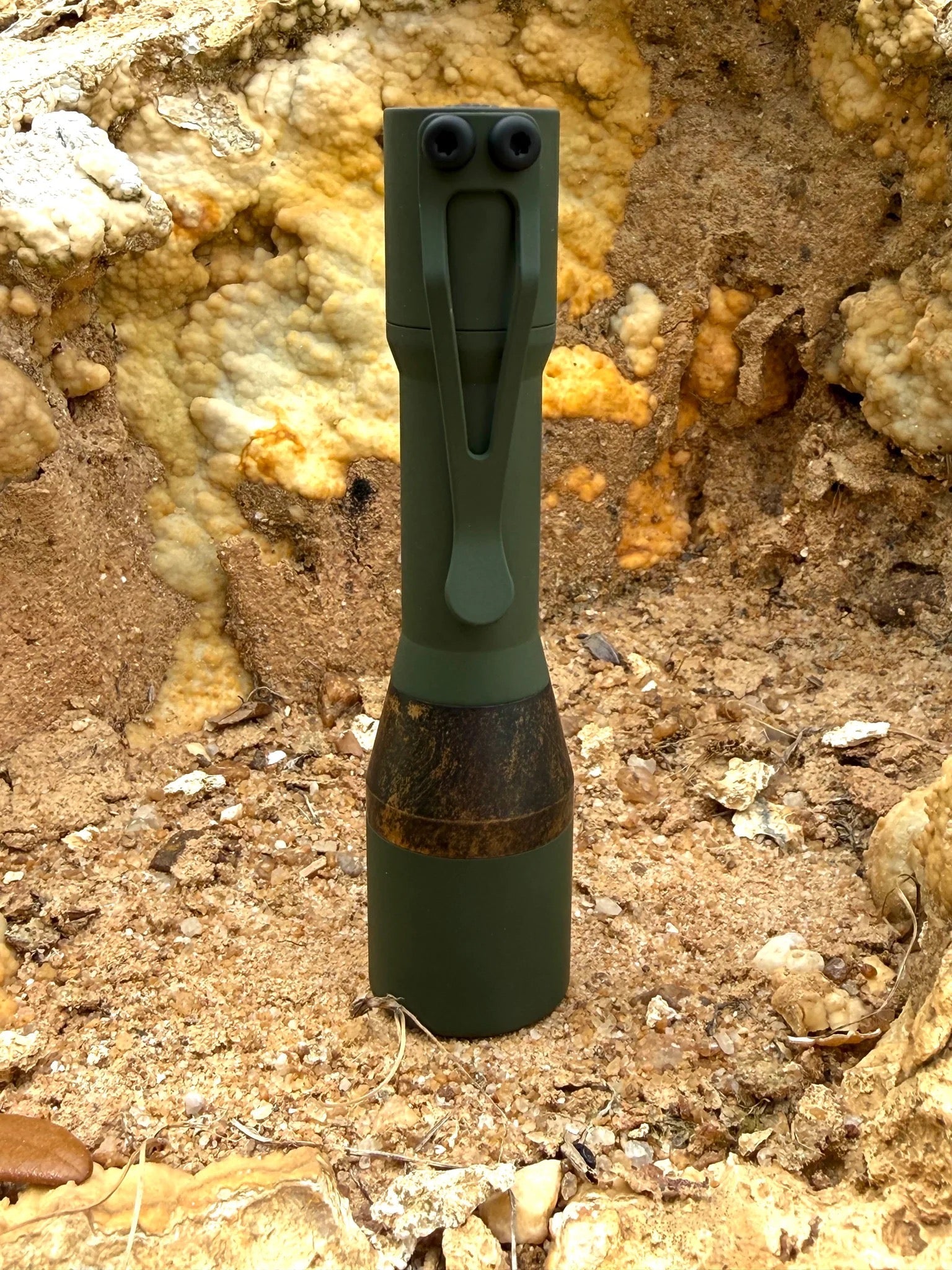

The CWF Custom Flashlights Mini Turbo is a compact high-performance thrower built for enthusiasts who want maximum beam intensity in a pocket-friendly platform. Made in the USA in Bainbridge, Georgia, this version pairs a Forest Green Cerakote titanium body with a copper engine, combining premium materials, small-batch craftsmanship, and standout EDC appeal.
Based on the popular Mini Arc platform, the Mini Turbo increases performance with a larger head and oversized engine design that extends to the outer edge of the light. This integrated structure creates a robust heat sink for improved thermal dissipation and more sustained performance.
At its core is a deep smooth reflector paired with an Osram CSLNM1 LED, producing an impressive 55,000 candelafor exceptional throw and beam intensity. Despite its powerful output characteristics, the Mini Turbo remains compact enough for everyday carry.
Powered by a 14500 lithium-ion battery and running Chimera firmware, the Mini Turbo offers full programmability, allowing users to tailor output levels, mode groups, and operating behavior to personal preference. Built-in thermal regulation and low-voltage protection help ensure reliable, safe performance.
The copper engine gives this version a distinctive character and will develop a natural patina over time, meaning each light will age with its own unique look. Premium, customizable, and proudly American-made, the Mini Turbo is built for users who appreciate craftsmanship and serious performance.
Feature Highlights
-
USA Made in Bainbridge, Georgia — Small-batch craftsmanship with premium materials.
-
55,000 Candela Output — High-intensity beam for serious throw performance.
-
Osram CSLNM1 LED — Tight beam focus with impressive long-range intensity.
-
Chimera Programmable Driver — Fully customizable modes and functions.
-
14500 Li-ion Powered — Compact power source with strong output capability.
-
Integrated Heat Sink Design — Larger head and extended engine improve thermal dissipation.
-
Forest Green Cerakote Titanium Body — Durable, corrosion-resistant, and visually distinctive.
-
Copper Engine — Premium construction with natural patina development over time.
-
Deep Smooth Reflector — Maximizes throw and beam intensity.
-
Thermal Regulation & Low-Voltage Protection — Safe and reliable operation.
Specifications
| Specification |
Details |
| Model |
Mini Turbo |
| Brand |
CWF Custom Flashlights |
| Origin |
USA (Bainbridge, Georgia) |
| LED |
Osram CSLNM1 |
| Max Intensity |
55,000 candela |
| Battery |
14500 Li-ion |
| Driver |
Chimera Firmware |
| Body Material |
Titanium (Forest Green Cerakote) |
| Engine Material |
Copper |
| Reflector |
Deep Smooth |
| Length |
4.2 in |
| Body Diameter |
0.75 in |
| Head Diameter |
1.0 in |
Chimera Firmware Programming
Mode Groups
- Moonlight, 5%, 15%, 35%, 50%, 100%
- Moonlight, 15%, 50%, 100%
- 5%, 15%, 35%, 100%
- 15%, 100%
- 5%, 15%, 35%, 50%, 100%
- 50%
Reversing Options (½-second press)
- Turbo → Strobe → Battery Check (1–8 flashes, 8 = full) → Bike Indicator Strobe
Configuration Menu
- Mode Group Select
- Memory Toggle
- Mode Order Toggle
- Temperature Calibration Mode
- Reversing Toggle
FAQ
Where is the CWF Mini Turbo made?
It is made in the USA in Bainbridge, Georgia.
How powerful is the Mini Turbo?
It produces up to 55,000 candela, making it a compact high-intensity thrower.
What battery does it use?
It runs on a 14500 lithium-ion battery.
What is Chimera firmware?
Chimera is a fully programmable driver system that allows users to customize brightness levels, mode groups, and operating behavior.
What makes this version different?
This version uses a Forest Green Cerakote titanium body with a copper engine, giving it a premium look and a unique patina over time.
Will the copper look exactly like the photos?
Not always. The copper engine will naturally vary and develop its own patina, so each light will have slightly different character.
Is this a good everyday carry flashlight?
Yes. It combines compact size, premium materials, and serious throw performance in a pocket-friendly format.
