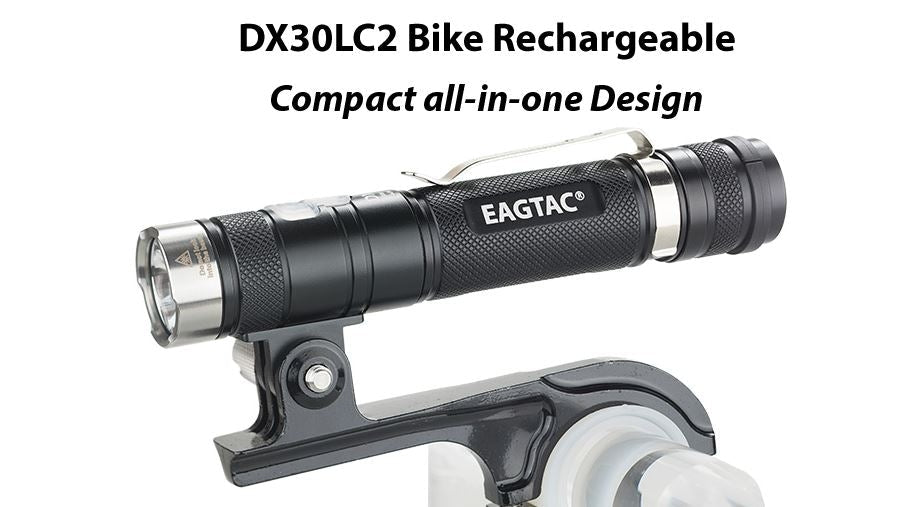

EagleTac DX30LC2-BR 1160 Lumen XP-L HI V3

EagleTac DX30LC2-BR 1160 Lumen XP-L HI V3

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Most Orders Ship Same Day!

Output and Runtime

Five brightness levels
Led lumen:
11605-980/590/221/77/9
ANSI FL-1 lumen:
9055-790/475/178/62/7
Runtime:
1.5/2.8/8.5/28/200+ hours (1x18650)6
0.8/1.5/5/17/140 hours (2xCR123A)
Three hidden auxiliary outputs7
Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Head Dia.
0.9 inches (22.5 mm)
Body Dia.
0.85 inches (22 mm)
Length:
5.2 inches (132 mm)
Weight1
2.3 ounces (65 grams)
w/o battery
3.9 ounces (111 grams)
w/ battery

Operations
Bike mount installation:
Trim the silicon padding according to your handle bar size (test fit if needed) and wrap it around the bar handle. Install the flashlight mount over the top of the silicon padding and fasten two mounting screws from underneath it with the hex key wrench. Insert the flashlight to the mount, adjust the flashlight aiming position, and secure the pivoting mounting screw. For general on-road ridding, the flashlight beam should be adjusted to point on the road in front of you to prevent blinding upcoming traffic or pedestrian.

Basic operations:
Turn on the light at MAX output by pressing the tailcap button until it clicks. Turn on the light at LOW output by holding the side switch button while pressing the tailcap button until it clicks. For momentary on function, slightly press the tailcap button To switch between different brightness levels, press the side button switch w/ flashlight on To enter hidden auxiliary mode, press and hold the side button switch for 3 seconds w/ flashlight on
Battery charging:
Remove the waterproof cover and insert the charging cable to charge the battery. User must turn on the flashlight switch at the tailcap to charge. (The flashlight will switch off the LED output during charge automatically until the charging cable is disconnected.) The indicator may start flashing when user plug in the charging cable (without turning on the tailacp switch). Switch on the tailcap switch to start charging and the charging indicator will reflect the current charging level.
