1 x 18350 (unprotected and button-top) IMR high-discharge li-ion type only Compatible battery size (diameter/length) 18-18.8mm/35-36mm
With included 18650 extension tube, DX3B Mini Pro can use button-top 1x18650 protected li-ion battery that measures 65 to 69.5mm long. Flashlight length with extension tube installed measures 4.6 inches (116mm). The 18650 battery and its protection board must withstand at least 10A current discharge.

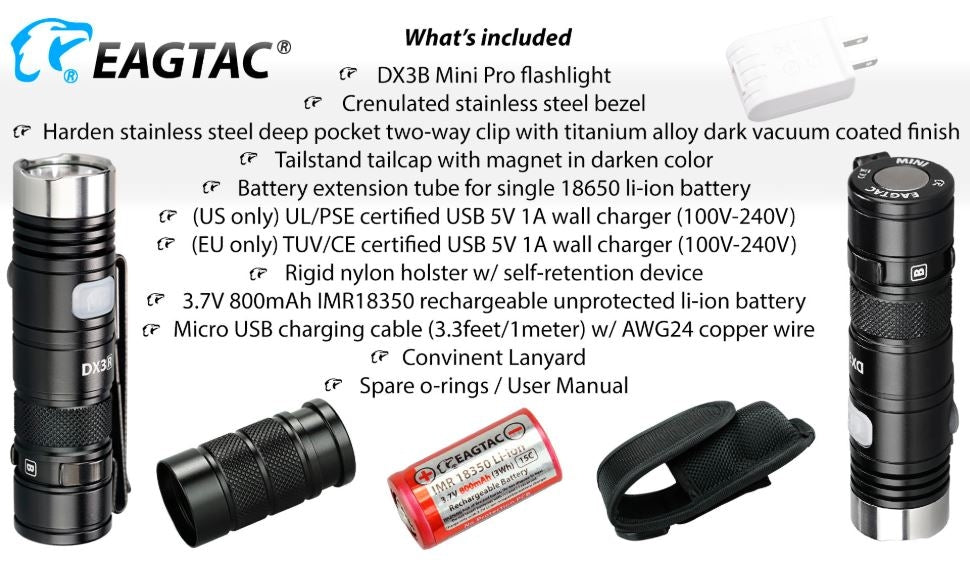

DX3B-M Pro flashlight Crenulated stainless steel bezel Harden stainless steel deep pocket two-way clip with titanium alloy dark vacuum coated finish Tailstand tailcap with magnet Battery extension tube for single 18650 li-ion battery (US only) UL/PSE certified USB 5V 1A wall charger (100V-240V) (EU only) TUV/CE certified USB 5V 1A wall charger (100V-240V) Rigid nylon holster w/ self-retention device 3.7V 1300mAh IMR18350 rechargeable unprotected li-ion battery
Spare o-rings User Manual Mil-Spec Para-cord Lanyard w/ quick attachment clip Micro USB USB charging cable (3.3feet/1meter) w/ AWG24 copper wire
Operations

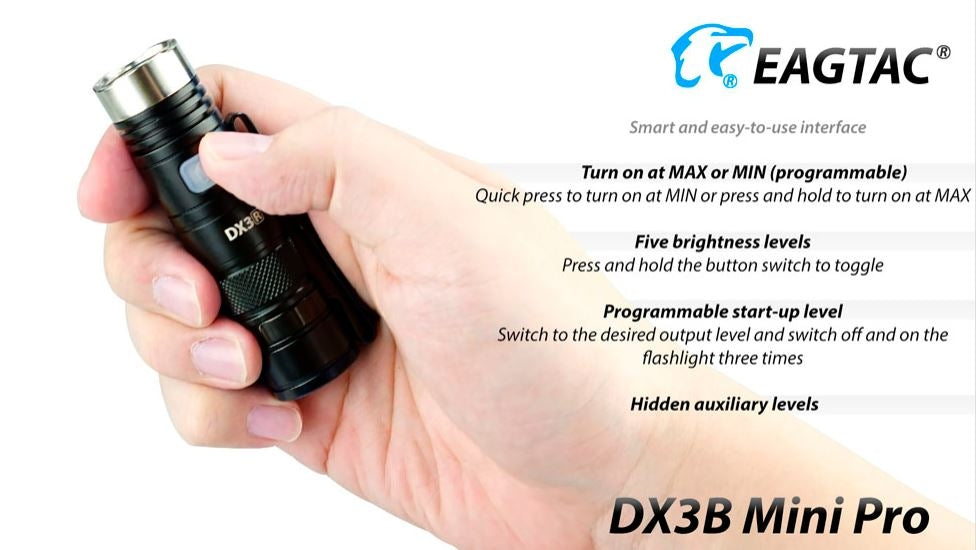

Turn on the light at MAX output by pressing and holding the on/off switch button Turn on the light at LOWEST (programmable) output by pressing and release the switch button quickly (within 0.5 second) (UPDATED) To program the LOWEST startup output, switch to the desired output level and WITHIN ONE SECOND switch off and on the flashlight for three times. In rare occasion user may experience the absence of lowest output level from a brand new purchase. If this is case, set the programmable startup level once will initialize the memory setting and will take care of this issue once and for all. To turn off the light anytime, press and release the on/off button switch while it is on. To switch between output levels, with the light turned on, press and hold the on/off switch for longer than 0.5 second to switch to next output. Press and hold the switch will cycle between all levels. To access AUX blinking mode, with the light turned on, cycle through at least two sets of regular brightness level to enter
Charging
Remove the waterproof silicon cap and insert the charging power plug to charge. Blue side LED indicates the battery is being charged. It reports charging percentage by blinking. Controls
Other features

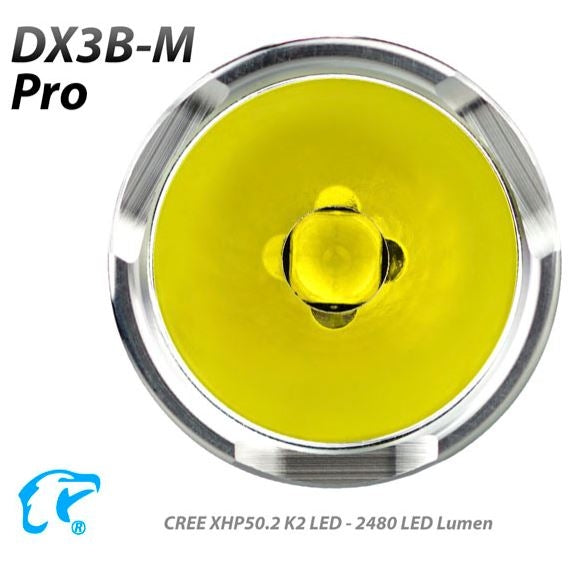

LED direct soldering on copper for maximum heatsink ability User replaceable glass lens Battery reverse polarity protection Ultra low internal resistance phosphor bronze springs (silver coated) Spring loaded positive and negative terminal Tail stand Warranty Ten years performance guaranteed warranty
