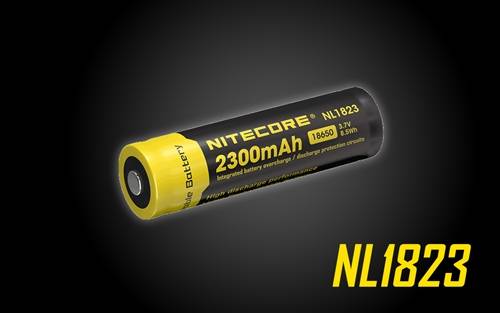

Nitecore NL1823 (NL183) – 2300mAh Protected 18650 Rechargeable Battery

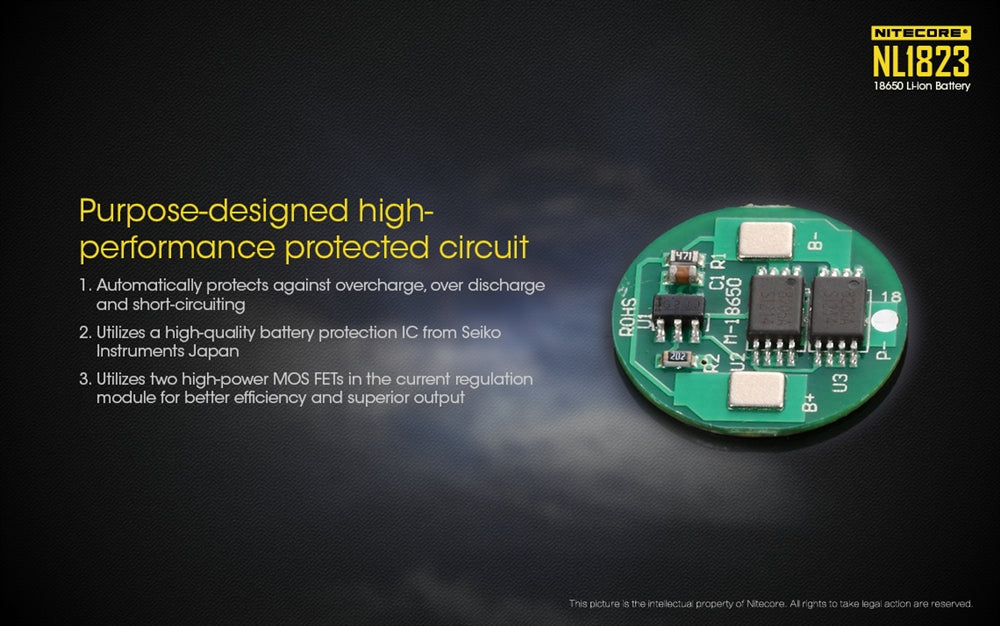

The Nitecore NL1823 (NL183) is a high-performance 2300mAh 3.7V protected 18650 lithium-ion rechargeable battery built for high-drain devices — Nitecore TM-series search lights, high-output LED flashlights, tactical lights, headlamps and other 18650 gear. An integrated PCB protection circuit guards against over-charge and over-discharge, and the cell is rated for more than 500 charge/discharge cycles.
Shoppers looking for a rechargeable 18650 battery, a protected 18650 cell, or a button-top flashlight battery will find the Nitecore NL1823 (NL183) a proven, widely compatible choice.
Specifications
| Model |
Nitecore NL1823 (NL183) |
| Chemistry |
Lithium-ion (Li-ion), rechargeable |
| Size |
18650 |
| Capacity |
2300mAh |
| Nominal Voltage |
3.7V |
| Energy |
8.5Wh |
| Protection |
Integrated PCB over-charge / over-discharge protection |
| Cycle Life |
500+ charge/discharge cycles |
| Dimensions |
L-2.73" x W-0.74" x H-0.74" |
| Weight |
1.60 oz |
| In the Box |
1 x Nitecore NL1823 (NL183) 18650 battery |
Frequently Asked Questions
What is the capacity of the Nitecore NL1823 (NL183)?
The Nitecore NL1823 (NL183) is rated at 2300mAh at a nominal 3.7V, for 8.5Wh of stored energy. That capacity is well matched to everyday EDC and tactical flashlights that run on a single 18650 cell.
Is the Nitecore NL1823 (NL183) a protected 18650 battery?
Yes. The Nitecore NL1823 (NL183) has an integrated PCB protection circuit that prevents over-charging and over-discharging, which is why it is safe to use in the majority of 18650-compatible flashlights and devices that call for a protected cell.
How many times can you recharge the Nitecore NL1823 (NL183)?
Nitecore rates the NL1823 (NL183) for more than 500 full charge and discharge cycles. Storing it at a partial state of charge and avoiding heat will help the Nitecore NL1823 (NL183) reach the upper end of that range.
What charger should you use with the Nitecore NL1823 (NL183)?
The Nitecore NL1823 (NL183) is charged in any standard external Li-ion charger that accepts 18650 cells — for example the Nitecore UI1 or UI2 USB chargers, or any Nitecore Intellicharger. It can also be charged in-light on flashlights with built-in charging.
What size battery is the Nitecore NL1823 (NL183)?
The Nitecore NL1823 (NL183) is an 18650-size cell measuring L-2.73" x W-0.74" x H-0.74" and weighing 1.60 oz. The protection circuit makes it very slightly longer than an unprotected 18650, so check the battery tube length on very compact lights.
How should you store and travel with the Nitecore NL1823 (NL183)?
Store the Nitecore NL1823 (NL183) at room temperature at roughly a half charge, keep the terminals from contacting metal by using a battery case, and carry spare lithium cells in your carry-on rather than checked baggage when flying.
Where can I buy the Nitecore NL1823 (NL183)?
You can buy the Nitecore NL1823 (NL183) 2300mAh protected 18650 rechargeable battery right here at Going Gear, an authorized Nitecore dealer, so every cell is genuine Nitecore stock and covered by the manufacturer's warranty.
