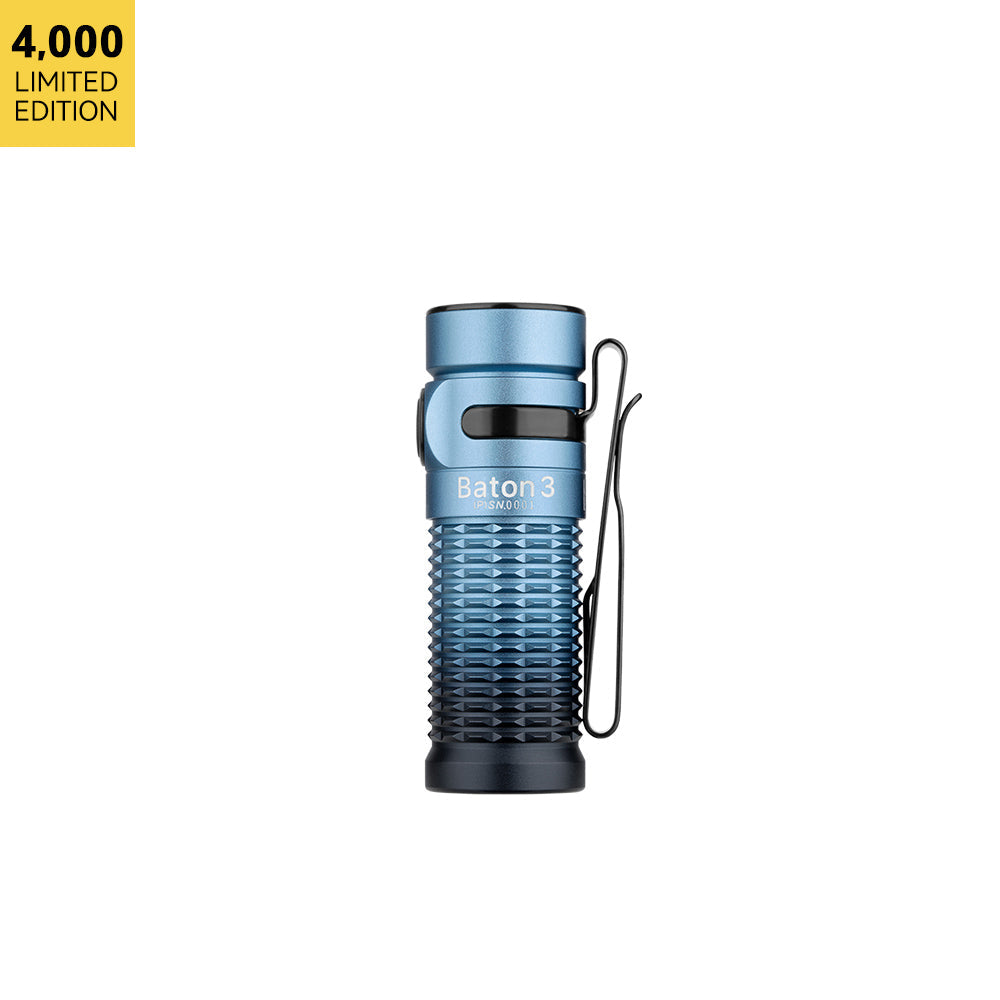

The Baton 3 is the upgraded version of Olight's popular S1R Baton II. Equipped with high performance LED and TIR lens for a soft and balanced beam, this extremely compact light delivers an incredible maximum beam of 1,200 lumens and 166 meters. It is powered by a customized IMR16340 battery rechargeable via the MCC 1A/MCC3 magnetic charging cable. The new anti-slip body texture looks exquisite and enhances the grip. The Baton 3 is an ultimate pocket light in performance and convenience.
Â
GENERAL DATA
Beam Distance (ft)
545
Beam Distance (m)
166
Max. Performance (lumens)
1,200
Charge Type
Magnetic USB charge base
Powered By
Customized 550mAh IMR16340 Rechargeable Battery
Light Intensity (candela)
6,889
Light Form
Wide/broad hotspot. Perfect for up close illumination.
Lens / Reflector Type
TIR Optic Lens
Mode Operation
Side Switch
Form/Size Factor
Small size (Car key / Zippo Lighter)
Series
Series Baton
Unique Characteristics
The Baton 3 delivers a huge output of 1,200 lumens, a 20% brightness increase, and up to 166-meter throw, a 14% increase over the S1R Baton II.
Powered by a single customized IMR16340 battery, the Baton 3 boasts a max runtime of 20 days that you can always count on.
Premium beam: A perfectly balanced hotspot for optimal clarity and a soft transition to maintain a comfortable vision during use.
The two-way pocket clip can be attached to belts, pockets, and backpacks for easy carrying, or attached to the hat brim to use the Baton 3 as a convenient headlight.
The flat magnetic tail cap can stand steadily or be attached to iron objects for hands-free lighting.
The new anti-slip body texture enhances the grip.
LIGHTING LEVELS
LEVEL 1 (lumens)
1,200~300
Run-time LEVEL 1
1.5+75min
LEVEL 2 (lumens)
300
Run-time LEVEL 2
95min
LEVEL 3 (lumens)
60
Run-time LEVEL 3
7.5h
LEVEL 4 (lumens)
12
Run-time LEVEL 4
33h
LEVEL 5 (lumens)
0.5
Run-time LEVEL 5
20days
Strobe
Yes
SOS / BEACON
No
TECHNICAL CHARACTERISTICS
Waterproof
IPX8
Weight (g / oz)
53g / 1.87oz
Length (mm / in)
63mm / 2.48in
Head Diameter (mm / in)
21mm / 0.83in
Body Diameter (mm / in)
21mm / 0.83in
Light Source
High Performance CW LED
Packaging
Carton box
Use
everyday carry , car, camping, fishing, household, EDC, general use
