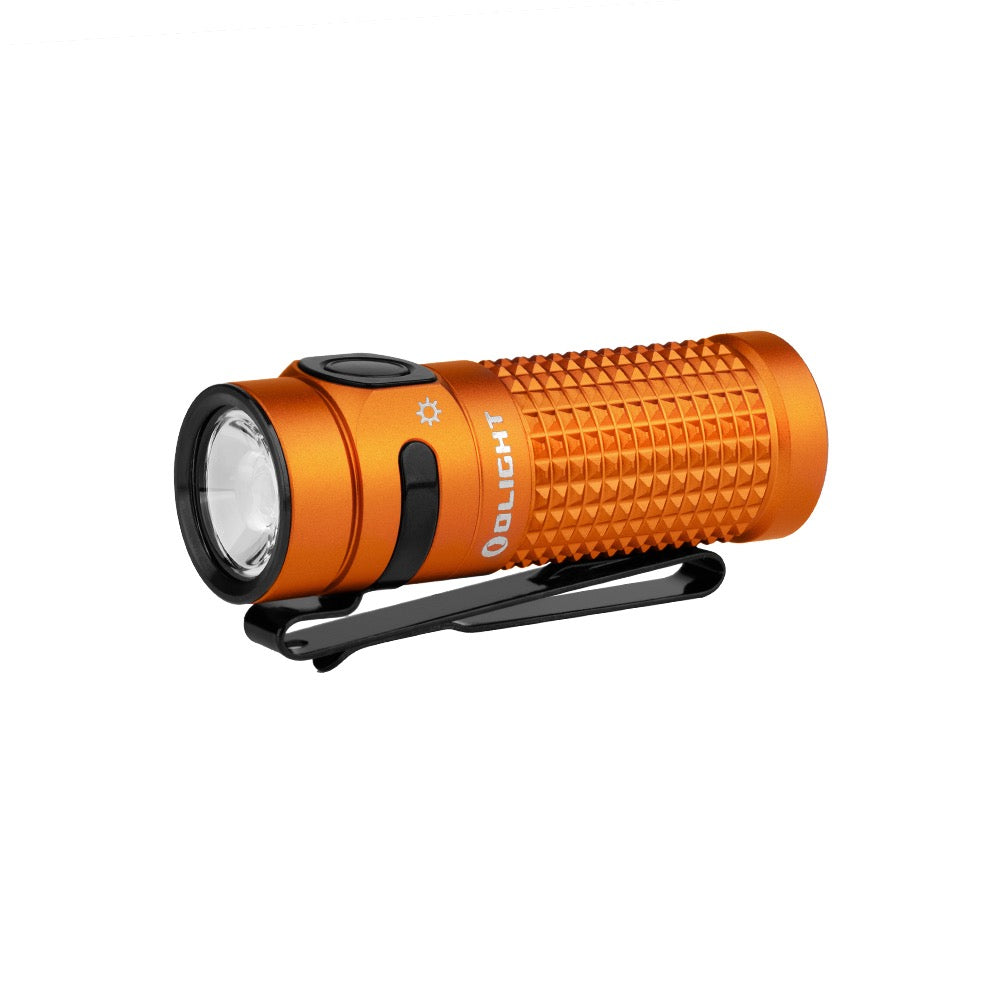

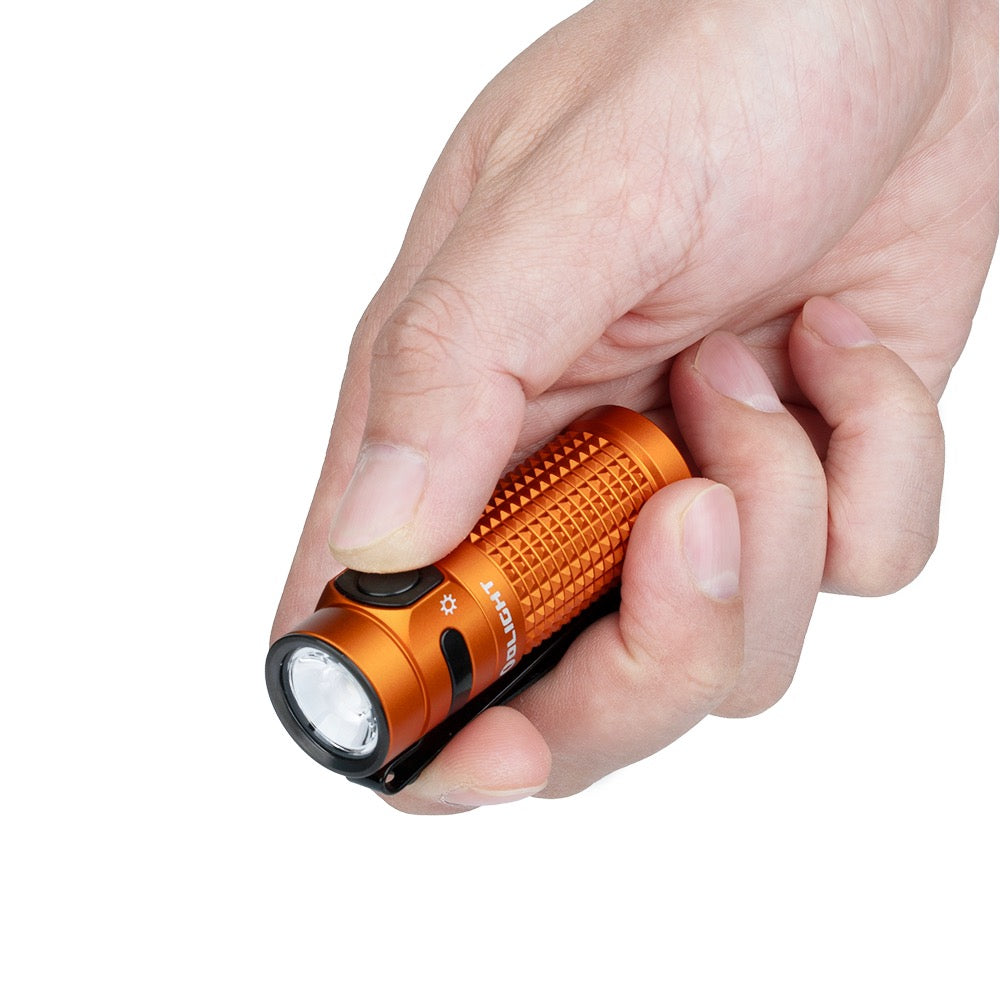

The Olight Baton 4 in Orange delivers powerful performance in an ultra-compact everyday carry design. At just 2.48 inches long, it’s shorter than most index fingers yet produces up to 1,300 lumens with a 170-meter (557 ft) beam distance and 7,225 candela peak intensity.
Powered by a customized 16340 650mAh rechargeable battery, the Baton 4 offers multiple brightness levels, from a long-lasting 0.5-lumen Moon mode to full Turbo output. Moon mode can run for up to 30 days, making it ideal for emergency use and extended carry situations.
The upgraded metal side switch enhances durability and usability, while laser microperforated indicators display brightness and battery status clearly. A TIR optic lens provides a balanced beam pattern with smooth spill and focused throw.
Built with an aluminum alloy body and rated IPX8 waterproof, the Baton 4 is ready for camping, hiking, mountaineering, or daily pocket carry. The vibrant orange finish adds high visibility and distinctive style while maintaining the compact power the Baton series is known for.
Available in Standard or Premium configurations with charging case.
Feature Highlights
-
Up to 1,300 Lumens — Strong output in a compact 2.48" body.
-
170m Beam Distance — Balanced throw and spill for versatile use.
-
30-Day Moonlight Runtime — 0.5-lumen mode for extended emergency lighting.
-

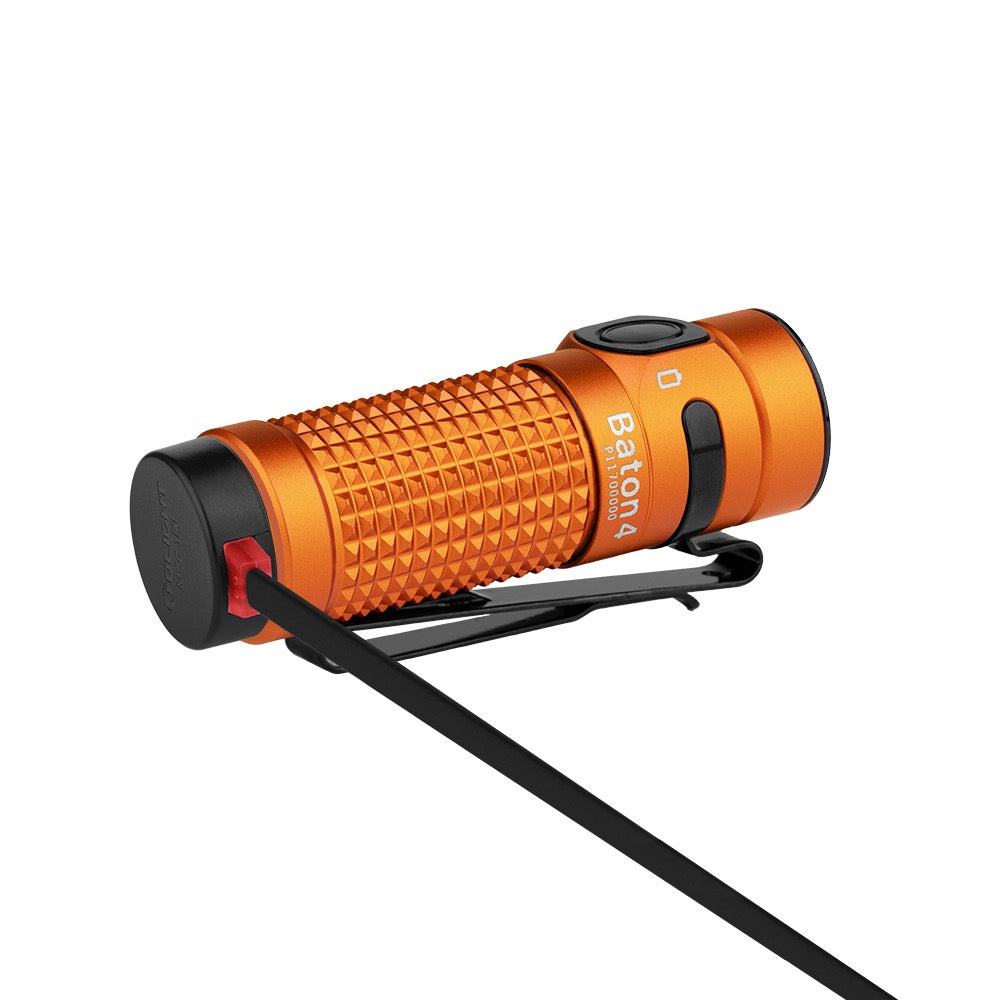

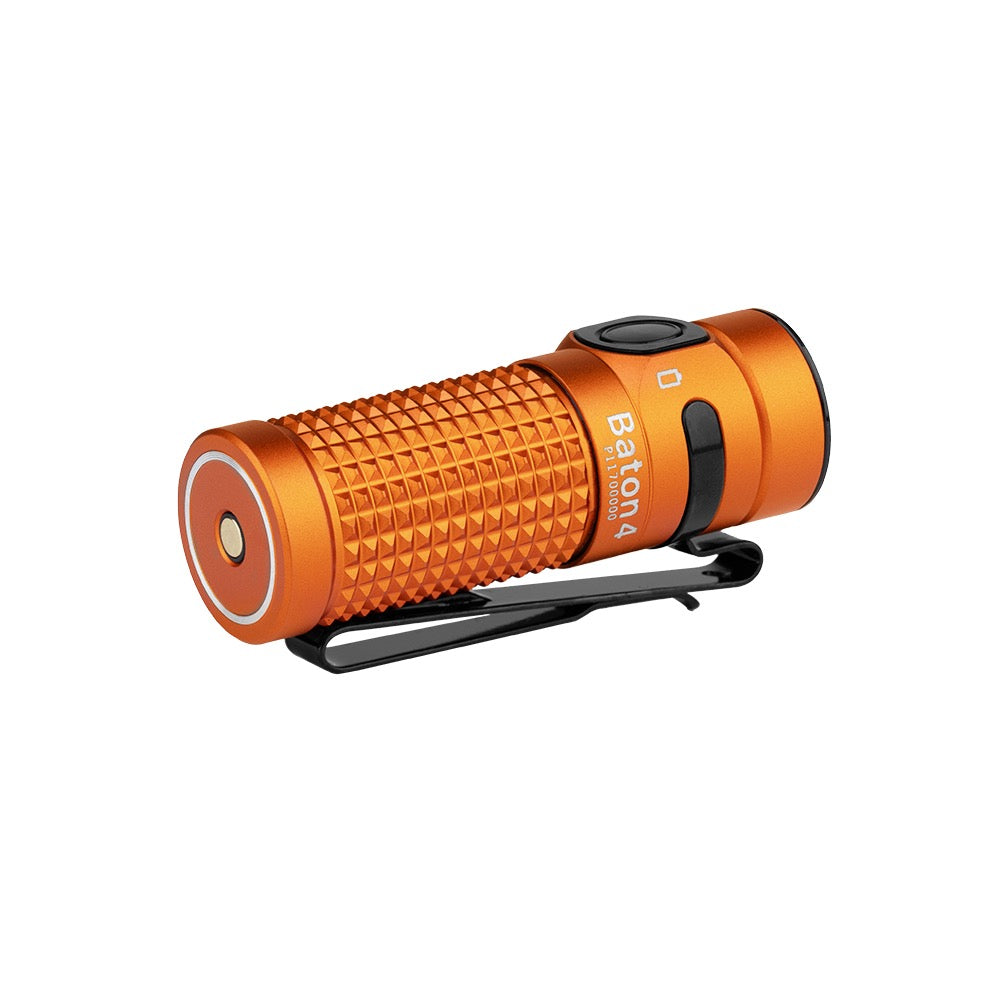

Magnetic MCC Charging — Convenient, secure recharging system.
-

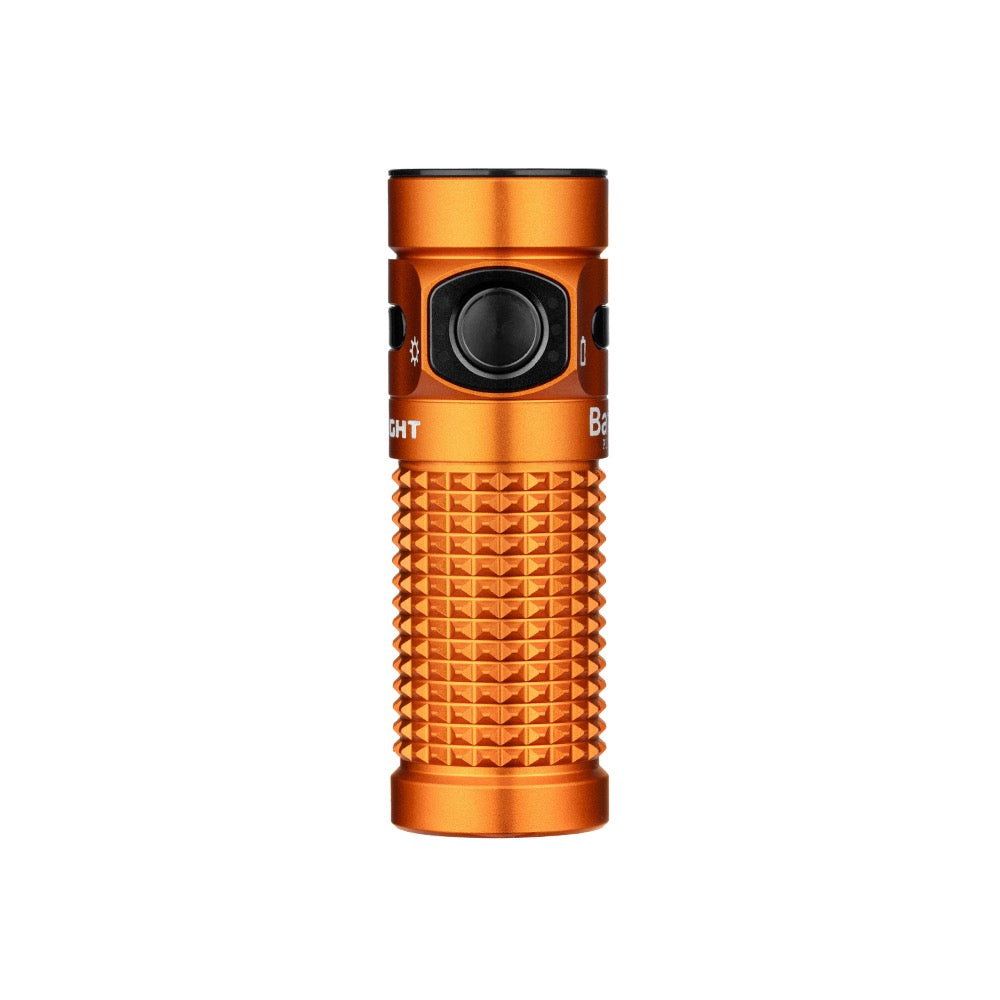

Durable Metal Side Switch — Improved tactile control with battery indicators.
-
TIR Optic Lens — Clean, evenly distributed beam.
-
IPX8 Waterproof Rating — Reliable performance in wet conditions.
-

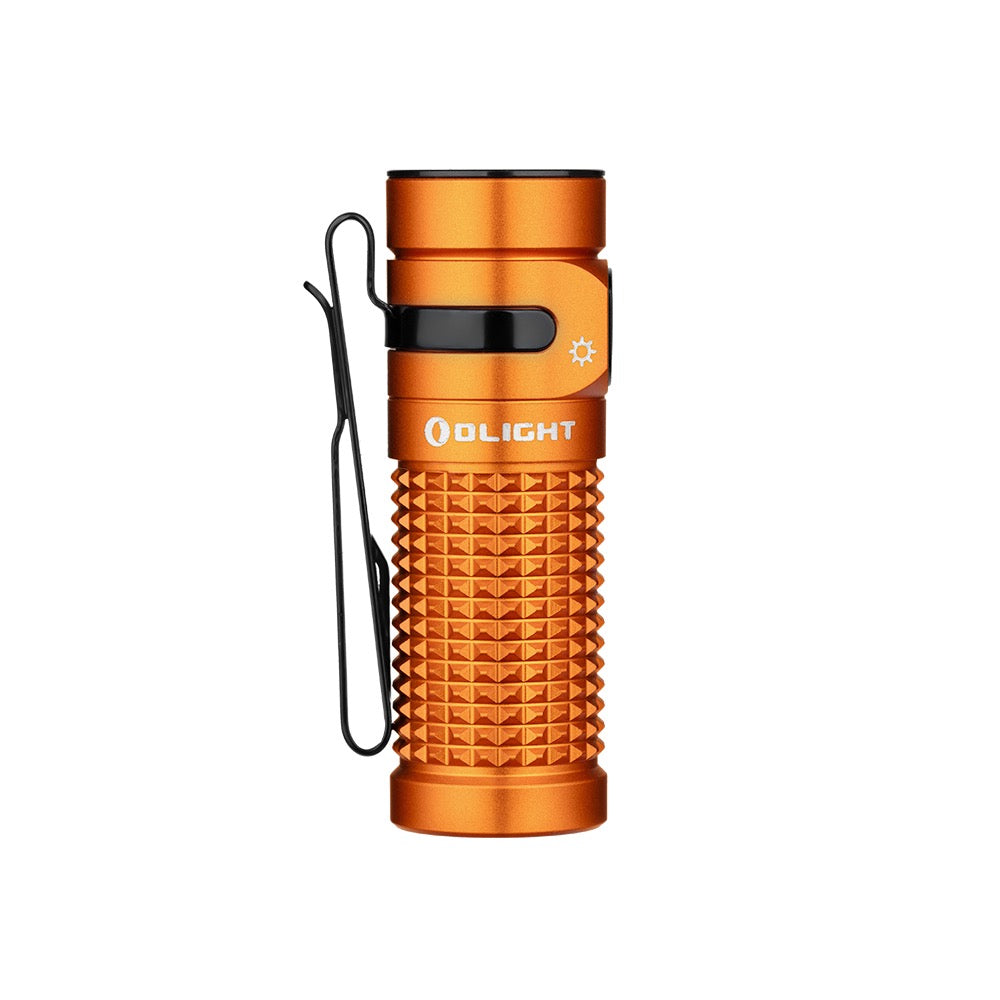

High-Visibility Orange Finish — Easy to locate in packs, gear bags, or outdoors.
Specifications
| Specification |
Details |
| Model |
Baton 4 |
| Series |
Baton Series |
| Max Output |
1,300 lumens |
| Beam Distance |
557 ft (170 m) |
| Peak Intensity |
7,225 candela |
| Light Source |
High Performance CW LED |
| Lens Type |
TIR Optic Lens |
| Power Source |
Customized 16340 650mAh Battery |
| Compatible Battery |
650mAh 3.6V IMR 16340 Rechargeable |
| Charging Type |
MCC 1A Magnetic Charging Cable |
| Waterproof Rating |
IPX8 |
| Body Material |
Aluminum Alloy |
| Mode Operation |
Side Switch |
| Dimensions (Flashlight) |
2.48 x 0.83 x 0.83 in (63 x 21 x 21 mm) |
| Weight (Standard) |
1.85 oz (52.5 g) |
| Weight (Premium) |
6.84 oz (194 g) |
Lighting Levels
| Mode |
Output |
Runtime |
| Turbo |
1300~600~300 lumens |
1.5 + 2.5 + 73 mins |
| High |
600~300~60 lumens |
7 + 72 + 16 mins |
| Medium |
60 lumens |
8 hrs |
| Low |
12 lumens |
35 hrs |
| Moon |
0.5 lumens |
30 days |
| Strobe |
1300 lumens |
13Hz |
Package Contents
Baton 4 Standard
FAQ
How bright is the Olight Baton 4?
It produces up to 1,300 lumens with a beam distance of 170 meters (557 feet).
How long does it run on low settings?
In Moon mode (0.5 lumens), it can run up to 30 days continuously.
How does it charge?
It uses Olight’s MCC 1A magnetic charging cable. The Premium version also includes a rechargeable charging case.
Is the Baton 4 waterproof?
Yes. It has an IPX8 waterproof rating.
Is the orange version different in performance?
No. The orange version has the same performance, output, and specifications as other Baton 4 models.
Does Olight offer a warranty on the Baton 4?
Yes. Olight provides a lifetime warranty, offering long-term support and peace of mind.
