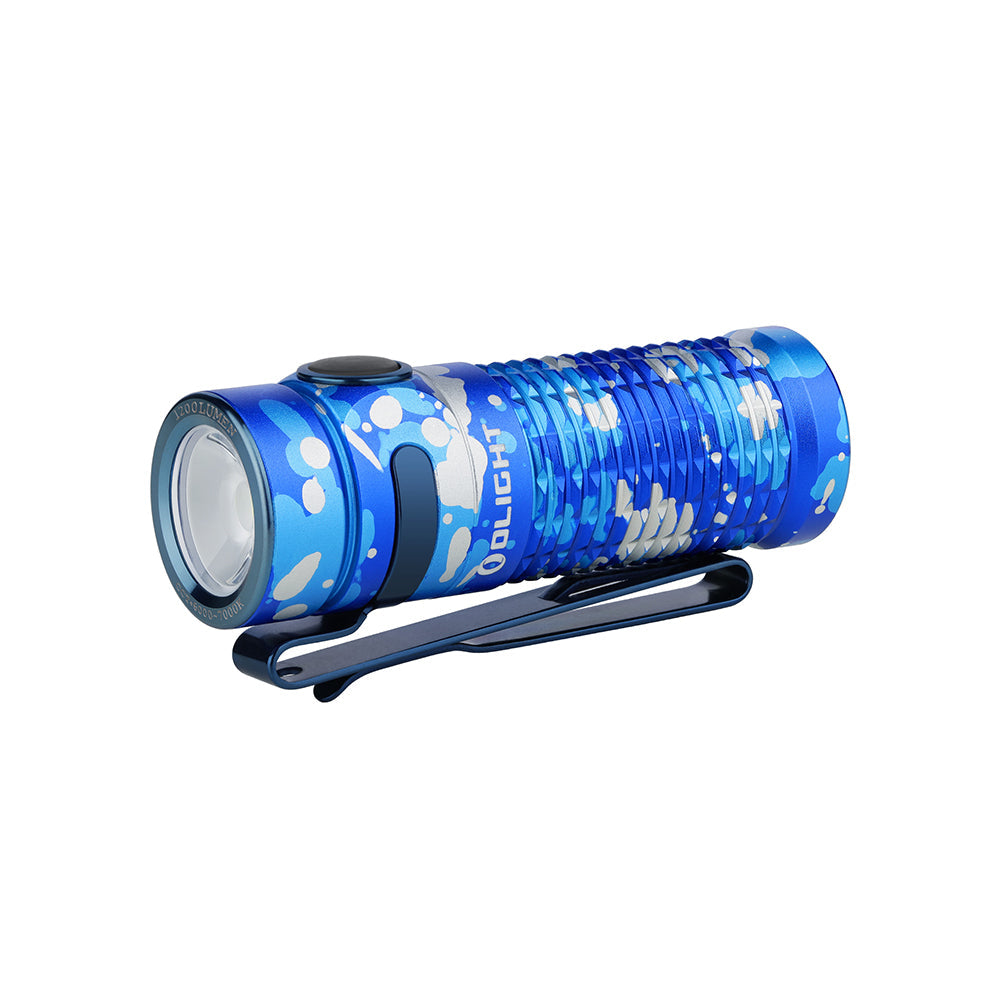

The Baton 3 is the upgraded version of Olight's popular S1R Baton II. Equipped with high performance LED and TIR lens for a soft and balanced beam, this extremely compact light delivers an incredible maximum beam of 1,200 lumens and 166 meters. It is powered by a customized IMR16340 battery rechargeable via the MCC 1A/MCC3 magnetic charging cable. The new anti-slip body texture looks exquisite and enhances the grip. The Baton 3 is an ultimate pocket light in performance and convenience.
GENERAL DATA
MAX OUTPUT
1200 lumens
POWERED BY
Customized 550mAh IMR16340 Rechargeable Battery
MAX RUNTIME
20 days
CHARGE TYPE
Magnetic USB charge base
MAX THROW
166 meters
MODE OPERATION
Side switch
MAX LIGHT INTENSITY
6889 candela
LENS/REFLECTOR TYPE
TIR Optic Lens
FORM/SIZE FACTOR
Small size (Car key / Zippo Lighter)
LIGHTING LEVELS
MODE 1
OUTPUT: 1200~300 lumens Â
RUNTIME: 1.5+75 minutes Â
DISTANCE: 166 meters
LIGHT INTENSITY: 6889 candela
MODE 2
OUTPUT: 300 lumens
RUNTIME: 95 minutes
DISTANCE: 82 meters
LIGHT INTENSITY: 1681 candela
MODE 3
OUTPUT: 60 lumens Â
RUNTIME: 7.5 hours Â
DISTANCE: 38 meters
LIGHT INTENSITY: 361 candela
MODE 4
OUTPUT: 12 lumens Â
RUNTIME: 33 hours Â
DISTANCE: 18 meters
LIGHT INTENSITY: 81 candela
MODE 5
OUTPUT: 0.5 lumens Â
RUNTIME: 20 days
STROBE
OUTPUT: 1200~650 lumens
FREQUENCY: 13 hz
TECHNICAL CHARACTERISTICS
DIMENSIONS
Length: 2.48 in/63 mm
Head Diameter: 0.83 in/21 mm Â
Body Diameter: 0.83 in/21 mm
LIGHT SOURCE
High Performance CW LED
WEIGHT
1.87 oz/53 g (Including Pocket Clip and Battery)
WATERPROOF
IPX8
BODY MATERIAL
Aluminum Alloy
DROP TEST
1.5 meters
USE
Everyday carry, car, camping, fishing, household, EDC, general use
