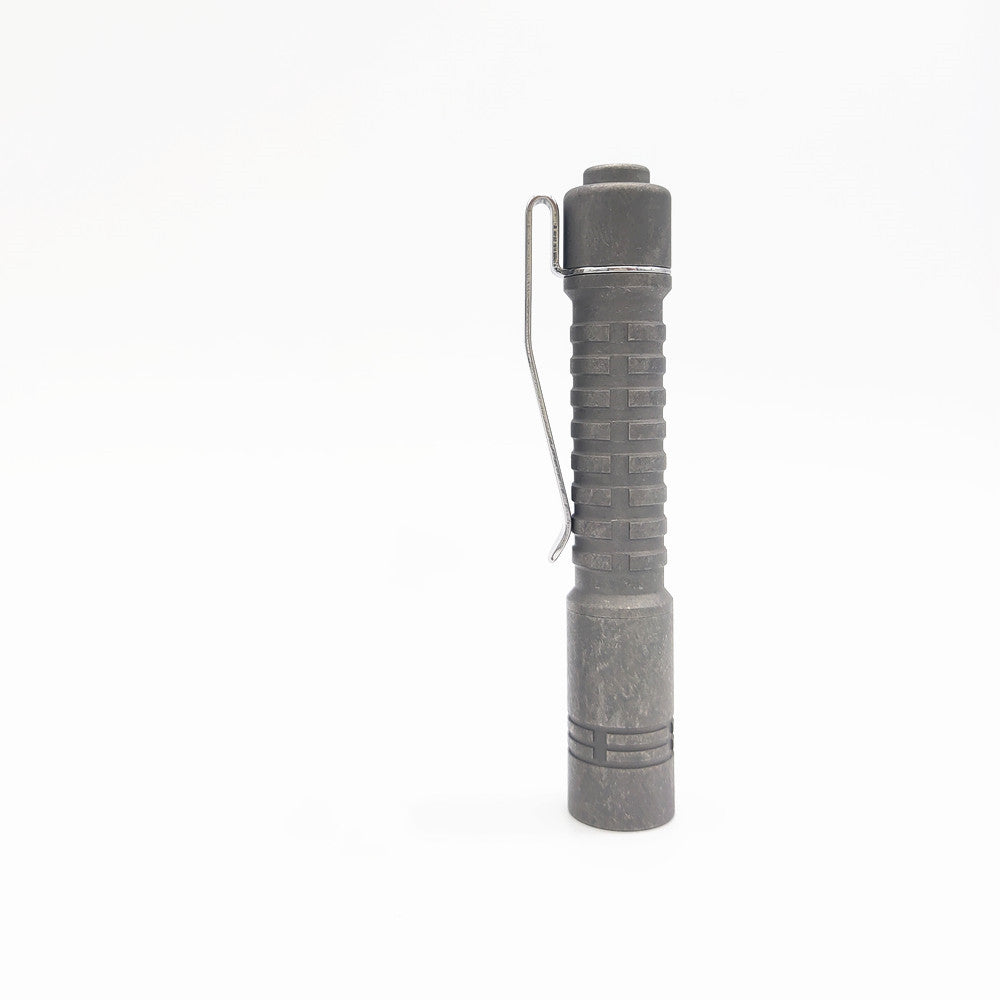

ReyLight Pineapple Mini Ti Stonewashed EDC Flashlight 1 * 10440 Battery (Included)

ReyLight Pineapple Mini Ti Stonewashed EDC Flashlight 1 * 10440 Battery (Included)

Regular price $52.50 USD
Regular price Sale price $52.50 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Most Orders Ship Same Day!

Nichia 519A 4000K LED.

Using single AAA battery, max 90 lumens, or 10440 Li-ion battery, max 240 lumens.     Flat top, UNPROTECTED 10440 battery suggested.  Some button top could also work, but some brands make the button to long, might cause a problem.

Light comes with a rechargeable Li-ion 10440 battery.

There is one tritium slot at the tail switch, 1.5*6mm size.



Size: 89mm length (including the switch button)   diameter: 15mm

Copper: 52 grams
Ti: 32grams



The driver has: Battery reverse protection.  High temperature protection. Low voltage protection.

Reverse clicky switch. Full click to turn on or off, half click (tap) to cycle modes.

Thanks Kevin Manley for the more detailed manual.

Reylight Mini Pineapple Programming Guide



1. (Full click to) Turn on the light.

2. Half click the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.

a. 1 blink: mode group selection. Half click the button to enter this menu.

i. 1 blink: (ML)-2%-20%-100%

ii. 2nd blink: (ML)-10%-40%-100%

iii. 3rd blink: (ML)-2%-10%-50%

iv. 4th blink: (ML)-50%-100%-strobe-SOS

It then repeats. Half click the button during any blink to select that mode group.

b. 2 blinks: mode memory on-off toggle (default off). Half click the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.

c. 3 blinks: moonlight mode off-on toggle (default on). Half click the button during the three blinks or during the strobe after to turn moonlight off. Repeat to turn moonlight on.

d. 4 blinks: mode order toggle (default LMH). Half click the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.

e. 5 blinks: factory reset. Half click the button during the five blinks or during the strobe after to reset the light to factory settings.

Shorcut: quick double tap to turbo.
