This version of the ACE is designed specifically for use on any universal 1-inch flashlight gunmount. The brass insert inside the tube has been removed, allowing the light body a smaller diameter. The circuitry is the same circuit in the classic ACE. However, the reflector has been optimized to remove the "donut" pattern in the hotspot. The extension tube matches the default body style and ergonomics.

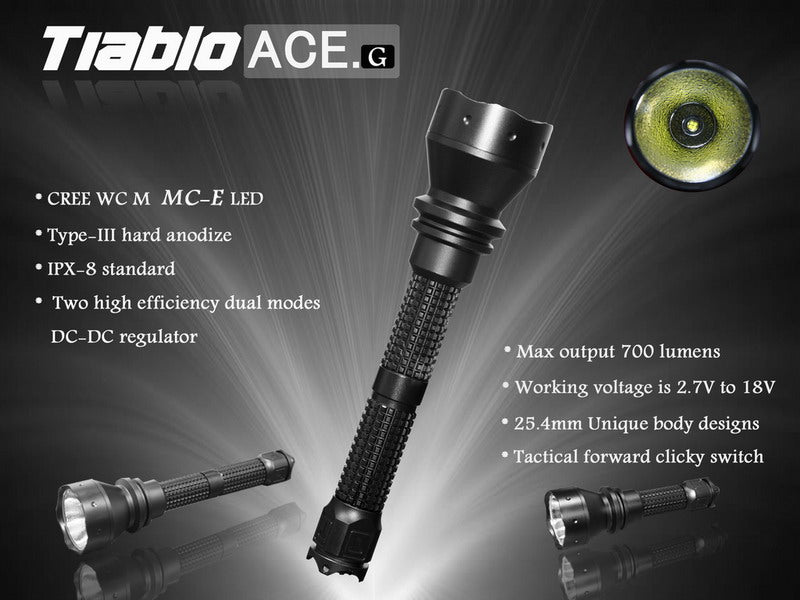

Tiablo ACE
Specifications
Cree MC-E (M rank, WC) LED
Step up and down constant current driver, with high efficiency dual mode DC-DC regulator (PWM / PFM) and circuit to protect Li-ion battery from over-discharging. Working voltage is 2.7V to 18V, under the circuit will flicker to remind users to replace battery.
Max output: 700 lumens, runtime 2.5 hours (2x18650, 3000mAh)
Function: one constant output mode
25.4 mm diamete
Supports several battery configurations
2xCR123A (3 volts each)
2x17335 Li-ion (with included battery extension tube)
2x18650 Li-ion (with included battery extension tube)
4xCR123A (3 volts each, with included battery extension tube)
Type-III hard anodized high quality aerospace grade T7075 aluminium construction
