Weltool 18650 3500mAh USB Rechargeable Li-ion Battery UB18-35

Weltool 18650 3500mAh USB Rechargeable Li-ion Battery UB18-35

Regular price $17.95 USD
Regular price Sale price $17.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Most Orders Ship Same Day!

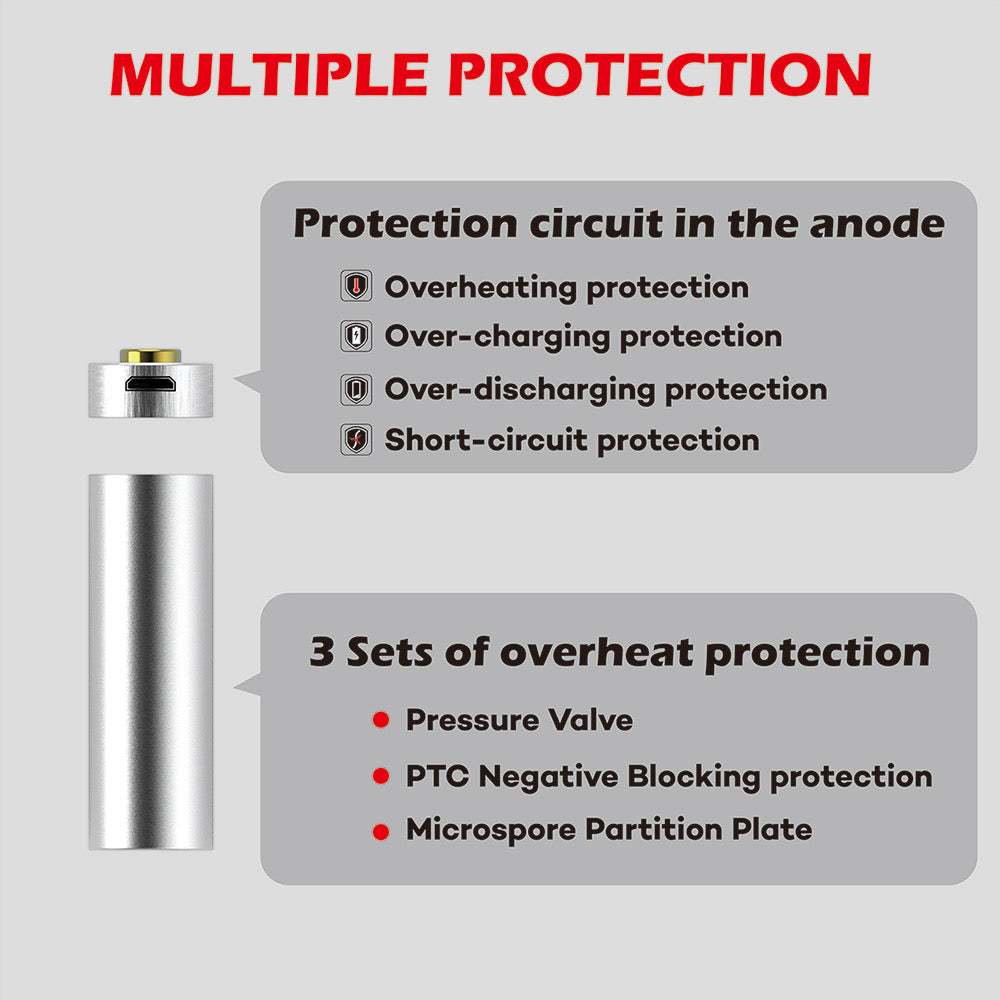

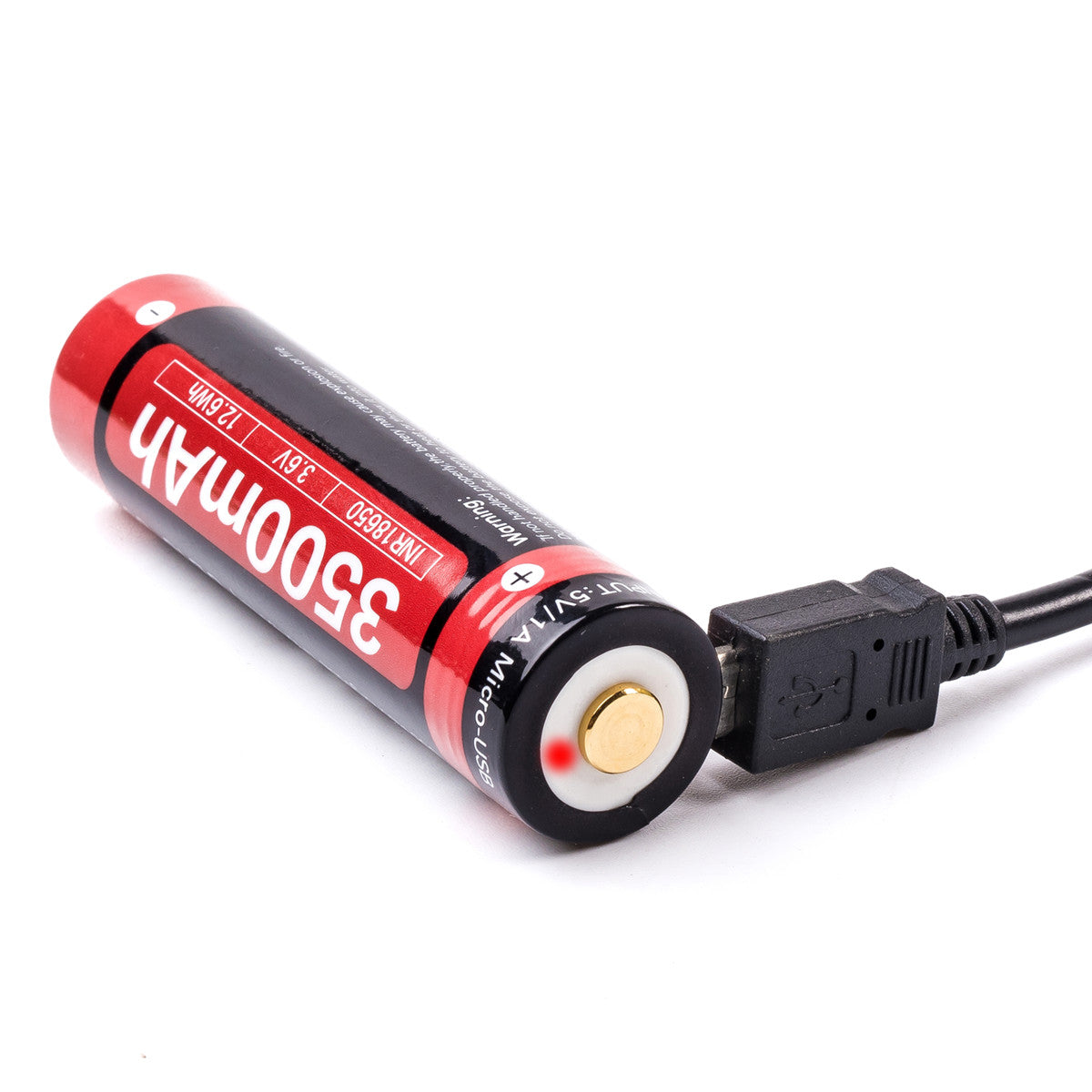

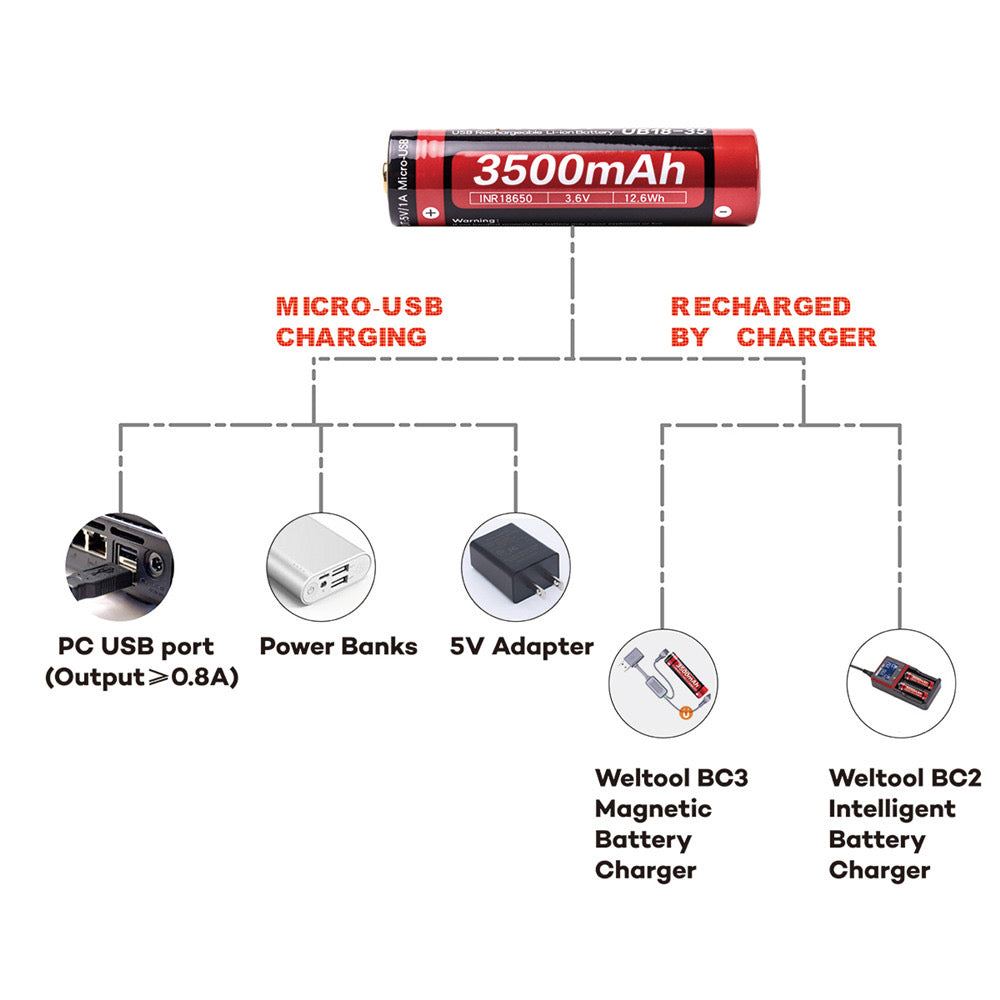

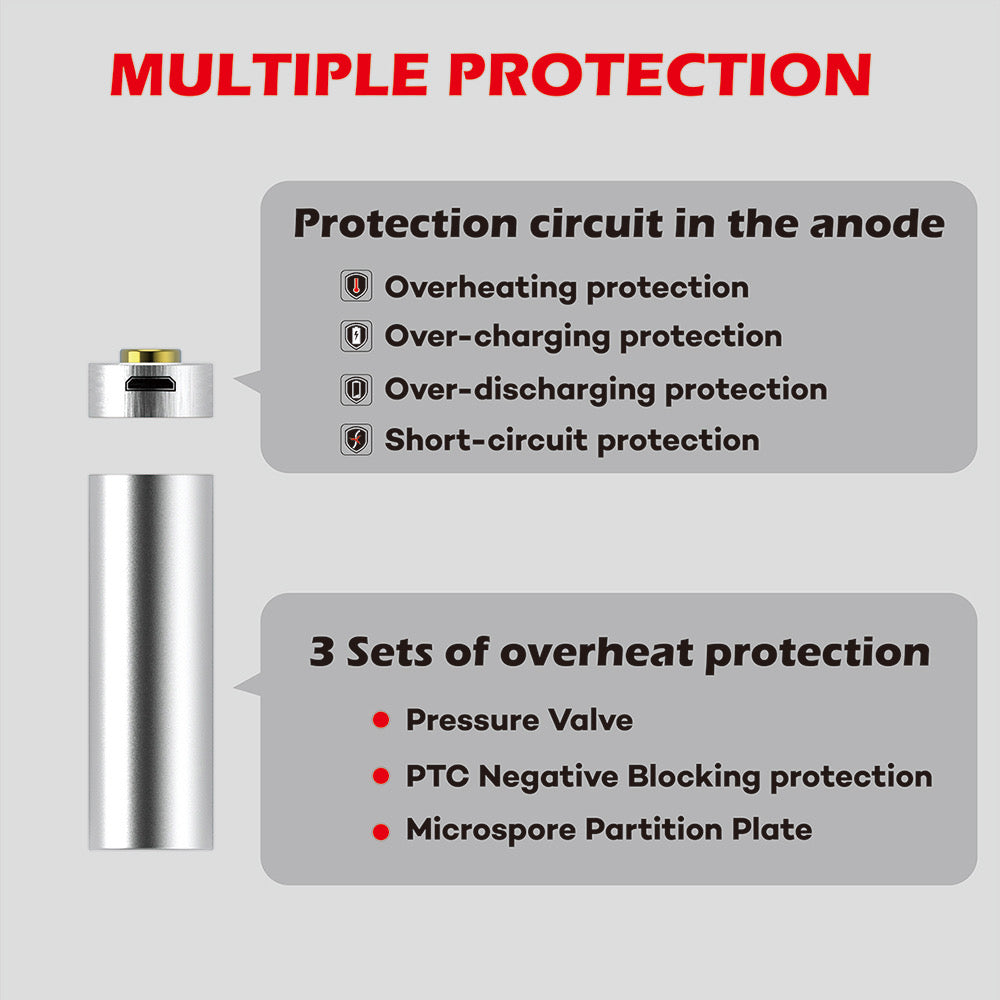

  UB18-35's anode protection circuit includes the Micro-USB charging port, enabling direct charging using USB cables connected to a 5V adapter, a PC USB port, or any portable power banks.  The UB18-35 can also be charged from a compatible Li-ion battery charger. While it is being charged, the indicator lamps on the battery will display the charging status. Incorporating a Japanese NCR18650GA core, UB18-35 features low internal resistance, large capacity, and high discharging current.  The core is protected by a three layer system: Pressure Valve, Micropore Partition Plate, and PTC Negative Blocking protection!
    There are four protection circuits for: Overheating, Over-charging, Over-discharging, and Short-circuit protection!  The anode (positive terminal) of the battery features a protruding cap for improved connection to springs or other PCB surfaces.  This improves functionality when the battery is used in series during application.  UB18-35 also has an improved exterior wrap to protect the battery from damage and retains the rugged dependability of Weltool!



  • Capacity:3500mAh
  • Resistance:≤50mΩ
  • Voltage:3.6-3.7V
  • Discharge:10A(MAX)
  • Charge:0.8A(Micro-USB port charging),1A(Battery Charger)
  • Charging Protection:4.3±0.05V
  • Discharge Protection:2.5±0.1V
  • Usage:75% capacity remaining after 500 charging cycles
  • Status Indicator:Red(Charging), Blue(Complete)
  • Temperature during charging:10-45℃
  • Temperature during discharging : 15-60℃
  • Storage Temperature:-15-50℃
  • Size:18.6±0.2mm (Dia.) ,70±0.2mm(Length)
  • Weight:49.7±0.05g
