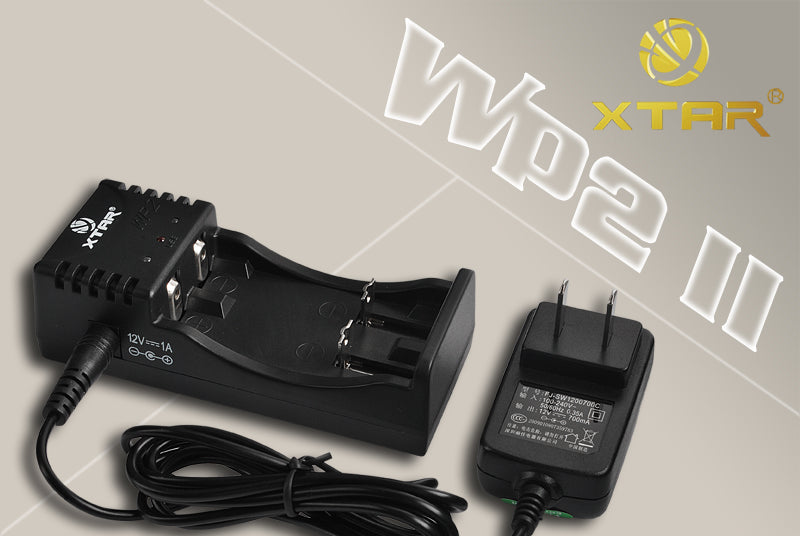

XTAR WP2 II 3.7v Lithium Ion Dual Bay Charger

NOTE: Don't use 1 amp setting for smaller cells (10440, rechargeable CR2, ect.)

Features:

Charging qualifications and structures

• Chargers 14500/ 14650/ 17670/ 18500/ 18650/ 18700/ 10440/16340
• Operation Temperature: 0~40„ƒ
• Input AC: 12V DC: 1000mA
• 500mA CC Current: 500m A±5%
• 1000 A CC Current: 1000m A±5%
• Cut-Off Voltage: 4.2±0.05V
• CV Cut-off Current: <100mA
• Standby Current: <20.0m A
• TC Current (Battery Volt 2.0~3.0V): 80±20m A
• Auto Recharging Threshold Value Voltage: 3.9±0.15V

USB Discharging qualifications and structures

• Operation Temperature: 0~40„ƒ
• USB Interface Output Floating Voltage: 5.0V
• Output Floating Voltage Ripple: <120 mV
• Reactive Current: <10m A
• Maximum Output Current: 500mA
• Battery Output Cut-off Voltage: 2.80±0.15V

Notice: The above-mentioned parameters tested in Lab are approximate and may vary between flashlight/charger, batteries and environments.
