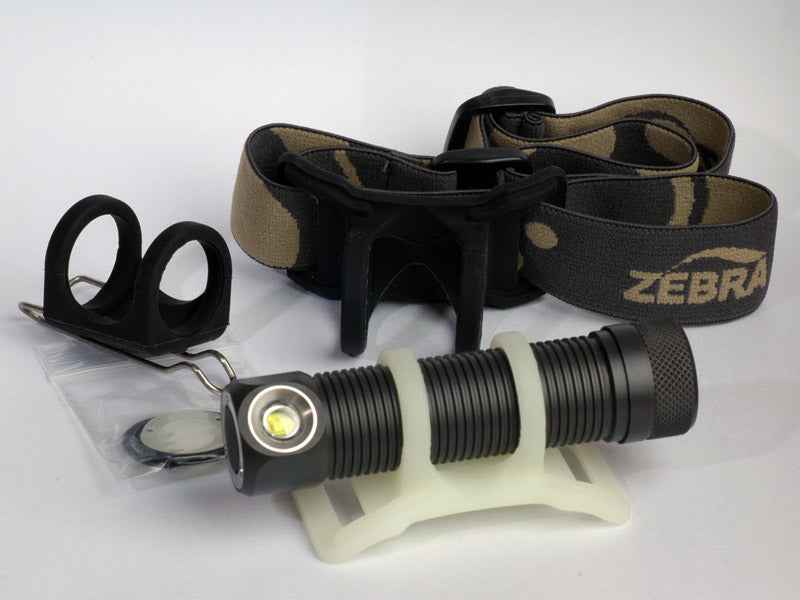

Please note that some of the pictured accessories are no longer included. See the complete list below.
Main Features and Specifications
LED: Cree XLamp XR-E Q5
3 modes, each can be set to one of the two levels for that mode
High: 190 lm (2 hrs) or 110 lm (4 hrs)
Med: 45 lm (10 hrs) or 15 lm (50 hrs)
Low: 0.5 lm (26 days) or 3 lm (9 days)
Low and Med settings are memorized. Factory default settings are 110, 15 and 3 lm. All output are out the front (Torch Lumen) figures. Tested with Panasonic 2550 mAh 18650 batteries.
Battery
One 18650 size rechargeable within the 2.8v to 4.5v range, including 3.6v/3.7v Li-ion or 3.0v LiFeP04 chemistries.
Reverse polarity protection circuit. Works with batteries that have flat positive terminals.
Discharging protection circuit turns off the light when the battery voltage drops below 2.8v.
Out of the six levels, four (190, 110, 15, and 3 lm) are current regulated and two (45 and 0.5 lm) are PWM derived.
Electrically conductive aluminum body provides inherent EMI/RFI shielding characteristics
Standby power consumption when the light is off: <1 μA
Weight
33 gram (1.2 oz)
77 gram (2.7 oz) with battery
100 gram (3.5 oz) with battery and headband
Dimensions
Length 91mm (3.6 inch)
Diameter (body) 21.5 mm (0.85 inch)
Diameter (head and tail) 23.5 mm (0.92 inch)
80 degree flood beam, with no hotspot.
Construction
CNC machined casing from Alcoa premium grade aluminum alloy billet, light weight with superior structural strength
Durable natural hard anodized finish
Impact resistant LEXAN polycarbonate lens
Operations
From Off
Press and hold to cycle through Low, Med and High, release to set.
Click to High, click again quickly to cycle through Med, Low and High.
When On
Click to Off.
Press and hold to cycle through Low, Med and High, release to set.
Double click to toggle between the two levels for that mode.
Note: Low and Medium settings are memorized after the light is turned off. High setting stays at the 110 lm (i.e. not memorized) after the light is turned off. High setting to the 190 lm has a 10 minute timer that automatically switch the light back to the 110 lm to prevent the light from overheating.
Waterproof
Meets IP68 in accordance with IEC 60529
Dust-tight
Protected against continuous immersion (1meter, >30 minutes)
